Metal Multi Cable Gland
- PRODUCT DETAIL
Usage:
Metal multi cable gland can hold cable firmly and have a wider cable range. And also resistant to salt water, weak acid, alcohol, oil, grease and common solvency.
Show:

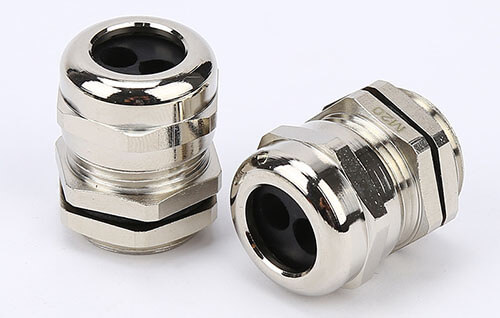

2 holes metal multi cable gland

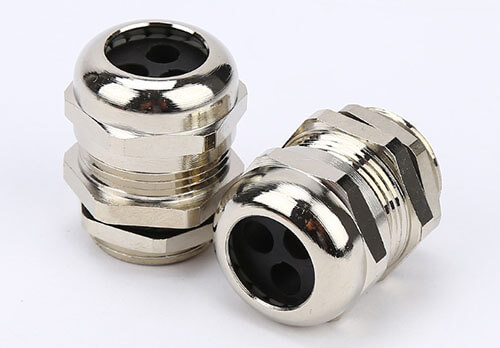

3 holes metal multi cable gland
Size Chart:
2 holes
|
Spec.
|
Thread
|
Part No.
|
Cable Range(mm)
|
Thread OD(mm)
|
Thread Length(mm)
|
Spanner Size(mm)
|
|
2 holes
|
M12*1.5
|
FG-H2-M12
|
3-1.2
|
12
|
7
|
14
|
|
M16*1.5
|
FG-H2-M16
|
4-1.6
|
16
|
8
|
18
|
|
|
M18*1.5
|
FG-H2-M18
|
3.5-2
|
18
|
8
|
20
|
|
|
M20*1.5
|
FG-H2-M20A
|
5.3-1.5
|
20
|
8
|
22
|
|
|
M20*1.5
|
FG-H2-M20B
|
3.5-2
|
20
|
8
|
22
|
|
|
M22*1.5
|
FG-H2-M22
|
6-2.5
|
22
|
8
|
24
|
|
|
M25*1.5
|
FG-H2-M25
|
8.7-4
|
25
|
9
|
30
|
|
|
M32*1.5
|
FG-H2-M32
|
10-5
|
32
|
9
|
35
|
|
|
PG7
|
FG-H2-PG7
|
3-1.2
|
12.5
|
8
|
14
|
|
|
PG9
|
FG-H2-PG9
|
4-1.6
|
15.2
|
8
|
17
|
|
|
PG11
|
FG-H2-PG11
|
3.5-2
|
18.6
|
8
|
20
|
|
|
PG13.5
|
FG-H2-PG13.5
|
5.3-1.5
|
20.4
|
8
|
22
|
|
|
PG16
|
FG-H2-PG16
|
6-2.5
|
22.5
|
8
|
24
|
|
|
PG21
|
FG-H2-PG21
|
8.7-4.5
|
28.3
|
9
|
30
|
|
|
PG29
|
FG-H2-PG29
|
10-5
|
37
|
10
|
40
|
|
|
G1/4
|
FG-H2-G1/4
|
3-1.2
|
13.1
|
7
|
14
|
|
|
G3/8
|
FG-H2-G3/8
|
4-1.6
|
16.6
|
8
|
18
|
|
|
G1/2
|
FG-H2-G1/2A
|
3.5-2
|
20.9
|
8
|
22
|
|
|
G1/2
|
FG-H2-G1/2B
|
5.3-1.5
|
20.9
|
8
|
22
|
|
|
G3/4
|
FG-H2-G3/4
|
8.7-4.5
|
26.4
|
9
|
30
|
|
|
G1
|
FG-H2-G1
|
10-5
|
33.2
|
10
|
35
|
|
|
NPT3/8
|
FG-H2-NPT3/8
|
4-1.6
|
17
|
8
|
18
|
|
|
NPT1/2
|
FG-H2-NPT1/2A
|
3.5-2
|
21.2
|
8
|
22
|
|
|
NPT1/2
|
FG-H2-NPT1/2B
|
5.3-1.5
|
21.2
|
8
|
22
|
|
|
NPT3/4
|
FG-H2-NPT3/4
|
8.7-4.5
|
26.5
|
9
|
30
|
|
|
NPT1
|
FG-H2-NPT1
|
10-5
|
33.2
|
10
|
35
|
3 holes
|
Spec.
|
Thread
|
Part No.
|
Cable Range(mm)
|
Thread OD(mm)
|
Thread Length(mm)
|
Spanner Size(mm)
|
|
3 holes
|
M12*1.5
|
FG-H3-M12
|
2.6-1.2
|
12
|
7
|
14
|
|
M16*1.5
|
FG-H3-M16
|
2.6-1.2
|
16
|
8
|
18
|
|
|
M18*1.5
|
FG-H3-M18
|
4-1.6
|
18
|
8
|
20
|
|
|
M20*1.5
|
FG-H3-M20A
|
5-2
|
20
|
8
|
22
|
|
|
M20*1.5
|
FG-H3-M20B
|
3.5-1.5
|
20
|
8
|
22
|
|
|
M22*1.5
|
FG-H3-M22
|
3.5-1.5
|
22
|
8
|
24
|
|
|
M25*1.5
|
FG-H3-M25
|
8-4
|
25
|
9
|
30
|
|
|
M32*1.5
|
FG-H3-M32
|
10-5
|
32
|
9
|
35
|
|
|
PG7
|
FG-H3-PG7
|
2.6-1.2
|
12.5
|
8
|
14
|
|
|
PG9
|
FG-H3-PG9
|
2.6-1.2
|
15.2
|
8
|
17
|
|
|
PG11
|
FG-H3-PG11
|
4-1.6
|
18.6
|
8
|
20
|
|
|
PG13.5
|
FG-H3-PG13.5
|
5-2
|
20.4
|
8
|
22
|
|
|
PG16
|
FG-H3-PG16
|
3.5-1.5
|
22.5
|
8
|
24
|
|
|
PG21
|
FG-H3-PG21
|
5-2
|
28.3
|
9
|
30
|
|
|
PG29
|
FG-H3-PG29
|
10-5
|
37
|
10
|
40
|
|
|
G1/4
|
FG-H3-G1/4
|
2.6-1.2
|
13.1
|
7
|
14
|
|
|
G3/8
|
FG-H3-G3/8
|
4-1.6
|
16.6
|
8
|
18
|
|
|
G1/2
|
FG-H3-G1/2A
|
5-2
|
20.9
|
8
|
22
|
|
|
G1/2
|
FG-H3-G1/2B
|
3.5-1.5
|
20.9
|
8
|
22
|
|
|
G3/4
|
FG-H3-G3/4
|
8-4
|
26.4
|
9
|
30
|
|
|
G1
|
FG-H3-G1
|
10-5
|
33.2
|
10
|
35
|
|
|
NPT3/8
|
FG-H3-NPT3/8
|
4-1.6
|
17
|
8
|
18
|
|
|
NPT1/2
|
FG-H3-NPT1/2A
|
3.5-1.5
|
21.2
|
8
|
22
|
|
|
NPT1/2
|
FG-H3-NPT1/2B
|
5-2
|
21.2
|
8
|
22
|
|
|
NPT3/4
|
FG-H3-NPT3/4
|
8-4
|
26.5
|
9
|
30
|
|
|
NPT1
|
FG-H3-NPT1
|
10-5
|
33.2
|
10
|
35
|
4 holes
|
Spec.
|
Thread
|
Part No.
|
Cable Range(mm)
|
Thread OD(mm)
|
Thread Length(mm)
|
Spanner Size(mm)
|
|
4 holes
|
M12*1.5
|
FG-H4-M12
|
2.3-1
|
12
|
7
|
14
|
|
M16*1.5
|
FG-H4-M16
|
2.3-1
|
16
|
8
|
18
|
|
|
M18*1.5
|
FG-H4-M18
|
3-1.2
|
18
|
8
|
20
|
|
|
M20*1.5
|
FG-H4-M20A
|
4.2-1.7
|
20
|
8
|
22
|
|
|
M20*1.5
|
FG-H4-M20B
|
3.5-1.5
|
20
|
8
|
22
|
|
|
M22*1.5
|
FG-H4-M22
|
4.5-2
|
22
|
8
|
24
|
|
|
M25*1.5
|
FG-H4-M25
|
5-2
|
25
|
9
|
30
|
|
|
M32*1.5
|
FG-H4-M32
|
9-4.5
|
32
|
9
|
35
|
|
|
PG7
|
FG-H4-PG7
|
2.3-1
|
12.5
|
8
|
14
|
|
|
PG9
|
FG-H4-PG9
|
2.3-1
|
15.2
|
8
|
17
|
|
|
PG11
|
FG-H4-PG11
|
3-1.2
|
18.6
|
8
|
20
|
|
|
PG13.5
|
FG-H4-PG13.5
|
4.2-1.7
|
20.4
|
8
|
22
|
|
|
PG16
|
FG-H4-PG16
|
4.5-2
|
22.5
|
8
|
24
|
|
|
PG21
|
FG-H4-PG21
|
7-3.5
|
28.3
|
9
|
30
|
|
|
PG29
|
FG-H4-PG29
|
9-4.5
|
37
|
10
|
40
|
|
|
G1/4
|
FG-H4-G1/4
|
2.3-1
|
13.1
|
7
|
14
|
|
|
G3/8
|
FG-H4-G3/8
|
3-1.2
|
16.6
|
8
|
18
|
|
|
G1/2
|
FG-H4-G1/2A
|
3.5-1.5
|
20.9
|
8
|
22
|
|
|
G1/2
|
FG-H4-G1/2B
|
4.5-2
|
20.9
|
8
|
22
|
|
|
G3/4
|
FG-H4-G3/4
|
7-3.5
|
26.4
|
9
|
30
|
|
|
G1
|
FG-H4-G1
|
9-4.5
|
33.2
|
10
|
35
|
|
|
NPT3/8
|
FG-H4-NPT3/8
|
2.3-1
|
17
|
8
|
18
|
|
|
NPT1/2
|
FG-H4-NPT1/2A
|
3.5-1.5
|
21.2
|
8
|
22
|
|
|
NPT1/2
|
FG-H4-NPT1/2B
|
4.5-2
|
21.2
|
8
|
22
|
|
|
NPT3/4
|
FG-H4-NPT3/4
|
7-3.5
|
26.5
|
9
|
30
|
|
|
NPT1
|
FG-H4-NPT1
|
9-4.5
|
33.2
|
10
|
35
|
5 holes
|
Spec.
|
Thread
|
Part No.
|
Cable Range(mm)
|
Thread OD(mm)
|
Thread Length(mm)
|
Spanner Size(mm)
|
|
5 holes
|
M16*1.5
|
FG-H5-M16
|
2.5-1
|
16
|
8
|
18
|
|
M20*1.5
|
FG-H5-M20A
|
3-1.2
|
20
|
8
|
22
|
|
|
M20*1.5
|
FG-H5-M20B
|
4.2-1.7
|
20
|
8
|
22
|
|
|
M25*1.5
|
FG-H5-M25A
|
3.5-1.5
|
25
|
9
|
30
|
|
|
M25*1.5
|
FG-H5-M25B
|
6-3
|
25
|
9
|
30
|
|
|
M32*1.5
|
FG-H5-M32
|
8-4
|
32
|
9
|
35
|
|
|
PG9
|
FG-H5-PG9
|
2.5-1
|
15.2
|
8
|
17
|
|
|
PG13.5
|
FG-H5-PG13.5A
|
3-1.2
|
20.4
|
8
|
22
|
|
|
PG13.5
|
FG-H5-PG13.5B
|
4.2-1.7
|
20.4
|
8
|
22
|
|
|
PG21
|
FG-H5-PG21A
|
3.5-1.5
|
28.3
|
9
|
30
|
|
|
PG21
|
FG-H5-PG21B
|
6-3
|
28.3
|
9
|
30
|
|
|
PG29
|
FG-H5-PG29
|
8-4
|
37
|
10
|
40
|
|
|
G3/8
|
FG-H5-G3/8
|
2.5-1
|
16.6
|
8
|
18
|
|
|
G1/2
|
FG-H5-G1/2A
|
3-1.2
|
20.9
|
8
|
22
|
|
|
G1/2
|
FG-H5-G1/2B
|
4.2-1.7
|
20.9
|
8
|
22
|
|
|
G3/4
|
FG-H5-G3/4
|
6-3
|
26.4
|
9
|
30
|
|
|
G1
|
FG-H5-G1
|
8-4
|
33.2
|
10
|
35
|
|
|
NPT3/8
|
FG-H5-NPT3/8
|
2.5-1
|
17
|
8
|
18
|
|
|
NPT1/2
|
FG-H5-NPT1/2A
|
3-1.2
|
21.2
|
8
|
22
|
|
|
NPT1/2
|
FG-H5-NPT1/2B
|
4.2-1.7
|
21.2
|
8
|
22
|
|
|
NPT3/4
|
FG-H5-NPT3/4
|
6-3
|
26.5
|
9
|
30
|
|
|
NPT1
|
FG-H5-NPT1
|
8-4
|
33.2
|
10
|
35
|
6 holes
|
Spec.
|
Thread
|
Part No.
|
Cable Range(mm)
|
Thread OD(mm)
|
Thread Length(mm)
|
Spanner Size(mm)
|
|
6 holes
|
M16*1.5
|
FG-H6-M16
|
2-1
|
16
|
8
|
18
|
|
M20*1.5
|
FG-H6-M20
|
3-1.2
|
20
|
8
|
22
|
|
|
M25*1.5
|
FG-H6-M25A
|
3.5-1.5
|
25
|
9
|
30
|
|
|
M25*1.5
|
FG-H6-M25B
|
5.3-2.4
|
25
|
9
|
30
|
|
|
M32*1.5
|
FG-H6-M32
|
7-3.5
|
32
|
9
|
35
|
|
|
PG9
|
FG-H6-PG9
|
2-1
|
15.2
|
8
|
17
|
|
|
PG13.5
|
FG-H6-PG13.5A
|
3-1.2
|
20.4
|
8
|
22
|
|
|
PG21
|
FG-H6-PG21A
|
3.5-1.5
|
28.3
|
9
|
30
|
|
|
PG21
|
FG-H6-PG21B
|
5.3-2.4
|
28.3
|
9
|
30
|
|
|
PG29
|
FG-H6-PG29
|
7-3.5
|
37
|
10
|
40
|
|
|
G3/8
|
FG-H6-G3/8
|
2-1
|
16.6
|
8
|
18
|
|
|
G1/2
|
FG-H6-G1/2
|
3-1.2
|
20.9
|
8
|
22
|
|
|
G3/4
|
FG-H6-G3/4A
|
3.5-1.5
|
20.9
|
8
|
22
|
|
|
G3/4
|
FG-H6-G3/4B
|
5.3-2.4
|
26.4
|
9
|
30
|
|
|
G1
|
FG-H6-G1
|
7-3.5
|
33.2
|
10
|
35
|
|
|
NPT3/8
|
FG-H6-NPT3/8
|
2-1
|
17
|
8
|
18
|
|
|
NPT1/2
|
FG-H6-NPT1/2
|
3-1.2
|
21.2
|
8
|
22
|
|
|
NPT3/4
|
FG-H6-NPT3/4A
|
3.5-1.5
|
21.2
|
8
|
22
|
|
|
NPT3/4
|
FG-H6-NPT3/4B
|
5.3-2.4
|
26.5
|
9
|
30
|
|
|
NPT1
|
FG-H6-NPT1
|
7-3.5
|
33.2
|
10
|
35
|
7 holes
|
Spec.
|
Thread
|
Part No.
|
Cable Range(mm)
|
Thread OD(mm)
|
Thread Length(mm)
|
Spanner Size(mm)
|
|
7 holes
|
M20*1.5
|
FG-H7-M20
|
3-1.2
|
20
|
8
|
22
|
|
M25*1.5
|
FG-H7-M25
|
3.5-1.5
|
25
|
9
|
30
|
|
|
M32*1.5
|
FG-H7-M32
|
6-3
|
32
|
9
|
35
|
|
|
PG13.5
|
FG-H7-PG13.5
|
3-1.2
|
20.4
|
8
|
22
|
|
|
PG21
|
FG-H7-PG21
|
3.5-1.5
|
28.3
|
9
|
30
|
|
|
PG29
|
FG-H7-PG29
|
6-3
|
37
|
10
|
40
|
|
|
G1/2
|
FG-H7-G1/2
|
3-1.2
|
20.9
|
8
|
22
|
|
|
G3/4
|
FG-H7-G3/4
|
3.5-1.5
|
26.4
|
9
|
30
|
|
|
G1
|
FG-H7-G1
|
6-3
|
33.2
|
10
|
35
|
|
|
NPT1/2
|
FG-H7-NPT1/2
|
3-1.2
|
21.2
|
8
|
22
|
|
|
NPT3/4
|
FG-H7-NPT3/4
|
3.5-1.5
|
26.5
|
9
|
30
|
|
|
NPT1
|
FG-H7-NPT1
|
6-3
|
33.2
|
10
|
35
|
8 holes
|
Spec.
|
Thread
|
Part No.
|
Cable Range(mm)
|
Thread OD(mm)
|
Thread Length(mm)
|
Spanner Size(mm)
|
|
8 holes
|
M20*1.5
|
FG-H8-M20
|
2.8-1
|
20
|
8
|
22
|
|
M25*1.5
|
FG-H8-M25
|
3.5-1.5
|
25
|
9
|
30
|
|
|
PG13.5
|
FG-H8-PG13.5
|
2.8-1
|
20.9
|
8
|
22
|
|
|
PG21
|
FG-H8-PG21
|
3.5-1.5
|
26.4
|
9
|
30
|
|
|
G1/2
|
FG-H8-G1/2
|
2.8-1
|
20.4
|
8
|
22
|
|
|
G3/4
|
FG-H8-G3/4
|
3.5-1.5
|
28.3
|
9
|
30
|
|
|
NPT1/2
|
FG-H8-NPT1/2
|
2.8-1
|
21.2
|
8
|
22
|
|
|
NPT3/4
|
FG-H8-NPT3/4
|
3.5-1.5
|
26.5
|
9
|
30
|
Custom Service:
Metal multi cable gland custom service is workable for us. Like holes quantity, materials, packing quantity, packages, logo etc.
