Plastic Conduit Connector

Materials: Polyamide(nylon)



Colors: Black or Grey, others for custom service



Working Temperature: -20℃ ~ +120℃



Fireproof: General, V2, or V0 etc.



Thread: Metric, PG



Payment Term: Paypal, T/T, Western Union etc.

  • PRODUCT DETAIL

Usage:

Plastic flexible conduit connector is a kind of plastic quick connector. It is used to connect plastic flexible conduit with others(always machine). It is widely used in wire and cable protection industry. The protection level can reach IP68 with available waterproof ring.

Structure:

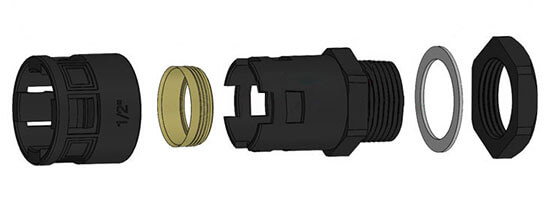

plastic flexible conduit connector structure
plastic flexible conduit connector structure

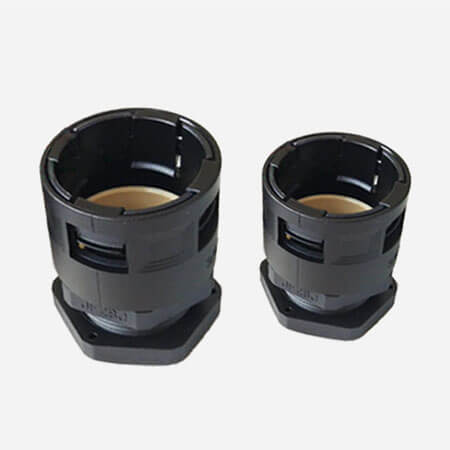

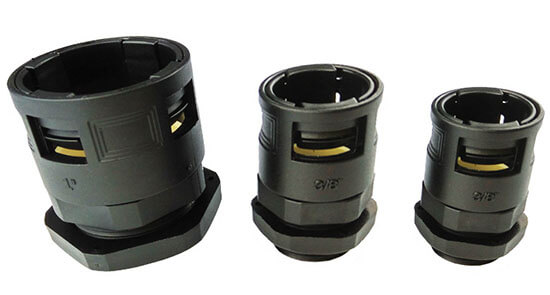

plastic flexible conduit connectors show
plastic flexible conduit connectors show

Size Chart:
PG Thread:

Part No.
Matched Conduit OD(inch)
Matched Conduit OD(mm)
Thread
Packing Quantity(pcs)
FG-10J
1/4″
10
PG7
100
FG-13J
5/16″
13
PG9
50
FG-15J
3/8″
15.8
PG11
50
FG-18J
18.5
PG13.5
50
FG-21J
1/2″
21.2
PG16
50
FG-25J
25
PG21
25
FG-28J
3/4″
28.5
PG21
25
FG-32J 32.0 PG29 20
FG-34J
1″
34.5
PG29
20
FG-42J
1-1/4″
42.5
PG36
20
FG-54J
2″
54.5
PG48
10

Metric Thread:

Part No.
Matched Conduit OD(inch)
Matched Conduit OD(mm)
Thread
Packing Quantity(pcs)
FG-10JM
1/4″
10
M10*1.5
100
FG-13JM
5/16″
13
M12*1.5
50
FG-15JM
3/8″
15.8
M16*1.5
50
FG-18JM
18.5
M20*1.5
50
FG-21JM
1/2″
21.2
M20*1.5
50
FG-25JM
25
M25*1.5
25
FG-28JM
3/4″
28.5
M25*1.5
25
FG-32JM
32
M32*1.5
20
FG-34JM
1″
34.5
M32*1.5
20
FG-42JM
1-1/4″
42.5
M40*1.5
20
FG5-4JM
2″
54.5
M50*1.5
10

Custom Service:

Plastic flexible conduit connectors custom service is workable for us. Like color, materials, packing quantity, packages, logo etc.
