Stainless Steel Flexible Conduit
- PRODUCT DETAIL
Usage:
stainless steel flexible conduit is a kind of flexible metal conduit. It’s double locked(interlocked) and general material is 304 stainless steel. 316 stainless steel flexible conduit also workable for us.
Structure:

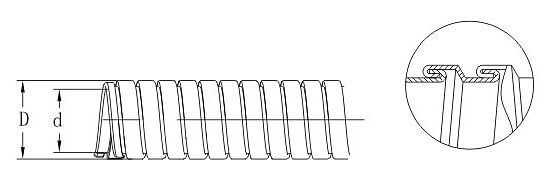

stainless steel flexible conduit structure – double locked(interlocked)

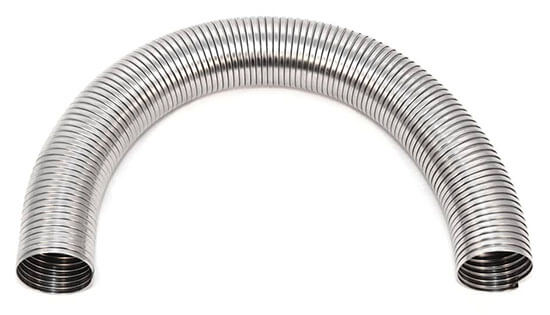

stainless steel flexible conduit show

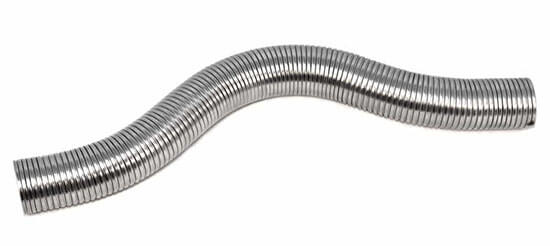

stainless steel flexible conduit show
Size Chart:
|
Part No.
|
Inner Diameter(inch) | Inner Diameter(mm) |
Outer Diameter(mm)
|
Packing Quantity(m)
|
|
FG-DM-4
|
0.16″
|
4.0
|
6.0
|
100
|
|
FG-DM-5
|
0.20″ |
5.0
|
7.0
|
100
|
|
FG-DM-6
|
0.24″ |
6.0
|
8.0
|
100
|
|
FG-DM-8
|
0.32″ |
8.0
|
10.0
|
100
|
|
FG-DM-10
|
0.40″ |
10.0
|
13.0
|
100
|
|
FG-DM-12
|
0.50″ |
12.5
|
15.7
|
100
|
|
FG-DM-16
|
0.65″ |
16.1
|
19.5
|
100
|
|
FG-DM-20
|
0.83″ |
20.8
|
24.3
|
50
|
|
FG-DM-26
|
1.04″ |
26.0
|
30.0
|
50
|
|
FG-DM-34
|
1.36″ |
34.0
|
39.0
|
30
|
|
FG-DM-39
|
1.56″ |
39.0
|
44.0
|
30
|
| FG-DM-44 | 1.76″ | 44.0 | 49.0 | 30 |
|
FG-DM-51
|
2.04″ |
51.0
|
56.0
|
30
|
Custom Service:
stainless steel flexible conduit custom service is workable for us. Like cutting service, materials, packing quantity, packages, logo etc.
