PVC Coated Flexible Conduit

Materials: Rohs PVC and galvanized steel, or PVC with stainless steel



Colors: Black, Grey, others for custom



Working Temperature: -10℃ ~ +80℃



Brand: FlexGlory



Place of Origin: Dongguan City, China



Payment Term: Paypal, T/T, Western Union etc.

  • PRODUCT DETAIL

Usage:

PVC coated flexible conduit is widely used in wire and cable protection. It’s inside is galvanized steel, and pvc coated out side. PVC coated stainless steel conduit are also workable for us. Compared flexible metal conduit, it’s waterproof. Compared with plastic flexible conduit, it is more durable and hard. You can easily find them in the machinery, metro, building etc. Kindly contact us(info@conduit-fittings.com) if you have any questions of pvc coated flexible conduit.

Structure:

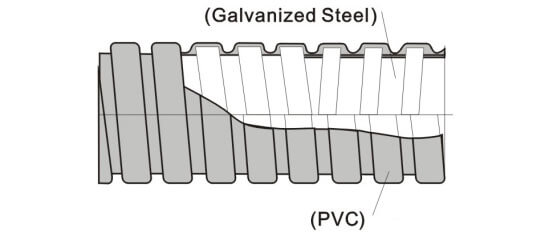

pvc coated flexible conduit structure
pvc coated flexible conduit structure

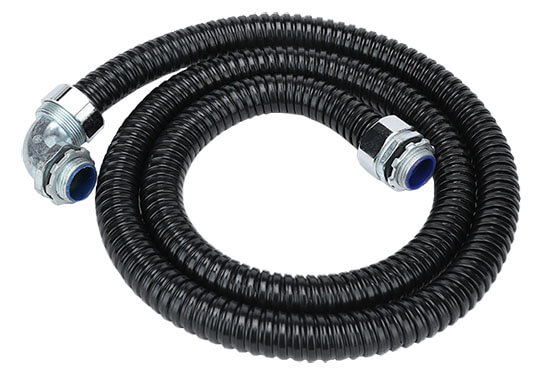

black pvc coated flexible conduit with connectors
black pvc coated flexible conduit with connectors

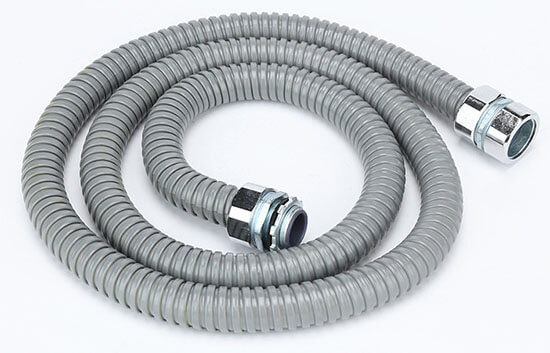

grey pvc coated flexible conduit with connectors
grey pvc coated flexible conduit with connectors

Size Chart:

Part No.
ID(mm)
ID(inch)
OD and Tolerance (mm)
Bending Radius(mm)
Packing Quantity(m)
FG-JSB-6
6
3/16″
8.8±0.25
40

200

FG-JSB-8
8
1/4″
11.3±0.30
45
100
FG-JSB-10
10
5/16″
14.8±0.30
55
100
FG-JSB-13
13
3/8″
16.5±0.35
65
100
FG-JSB-16
16
1/2″
20.3±0.35
85
100
FG-JSB-20
20
3/4″
24.3±0.40
100
50
FG-JSB-25
25
1″
29.5±0.45
120
50
FG-JSB-32
32
1-1/4″
37.8±0.50
150
25
FG-JSB-38
38
1-1/2″
44.7±0.60
180
25
FG-JSB-51
51
2″
58.2±1.00
220
20
FG-JSB-64
64
2-1/2″
71.4±1.50
310
20
FG-JSB-75
75
3″
85.6±2.00
350
20
FG-JSB-100
100
4″
111.0±3.00
410
10
FG-JSB-125
125
5″
135.5±3.00
460
5
FG-JSB-150
150
6″
160.5±4.00
500
5

Custom Service:

PVC coated flexible conduit custom service is workable for us. Like color, materials, packing quantity, packages, logo etc.
