Nickel Plated Brass Cable Gland
- PRODUCT DETAIL
Usage:
Nickel plated brass cable gland can hold cable firmly and have a wider cable range. They are widely used in wire and cable managements. And it can also resistant to salt water, weak acid, alcohol, oil, grease and common solvency.
Structure:

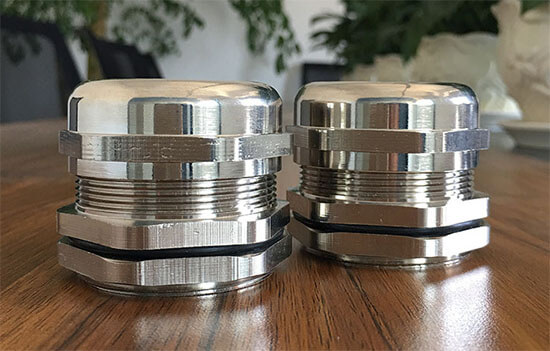

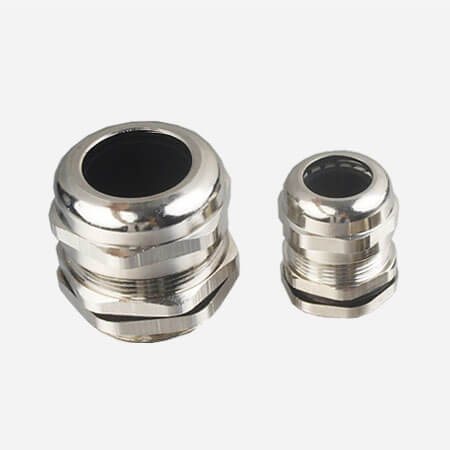

nickel plated brass cable gland show

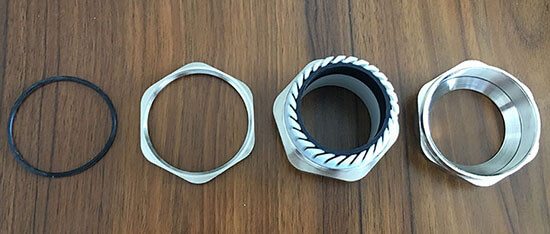

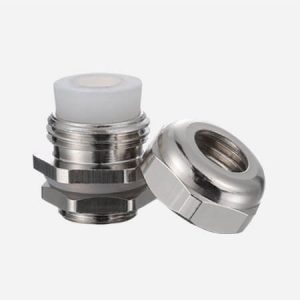

nickel plated brass cable gland structure

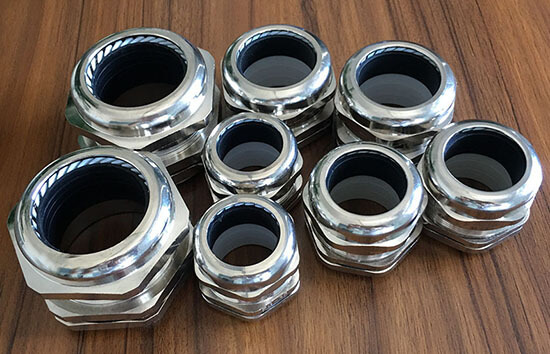

nickel plated brass cable glands show
Size Chart:
Metric Thread
|
Thread
|
Part No.
|
Cable Range(mm)
|
Thread OD(mm)
|
Thread Length(mm)
|
Spanner Size(mm)
|
|
M8*1
|
FG-NBCG-M8-5
|
2-5
|
8
|
5
|
12
|
|
M10*1
|
FG-NBCG-M10-6.5
|
3-6.5
|
10
|
6.5
|
14
|
|
M12*1.5
|
FG-NBCG-M12-6.5
|
3-6.5
|
12
|
6.5
|
14
|
|
M14*1.5
|
FG-NBCG-M14-8
|
4-8
|
14
|
8
|
17
|
|
M16*1.5
|
FG-NBCG-M16-8
|
4-8
|
16
|
8
|
18
|
|
M18*1.5
|
FG-NBCG-M18-10
|
5-10
|
18
|
8
|
20
|
|
M20*1.5
|
FG-NBCG-M20-12
|
6-12
|
20
|
8
|
22
|
|
M22*1.5
|
FG-NBCG-M22-14
|
10-14
|
22
|
8
|
24
|
|
M24*1.5
|
FG-NBCG-M24-14
|
10-14
|
24
|
9
|
24/27
|
|
M25*1.5
|
FG-NBCG-M25-18
|
13-18
|
25
|
9
|
30/27
|
|
M27*1.5
|
FG-NBCG-M27-18
|
13-18
|
27
|
9
|
30
|
|
M28*1.5
|
FG-NBCG-M28-18
|
13-18
|
28
|
9
|
30
|
|
M30*1.5
|
FG-NBCG-M30-18
|
13-18
|
30
|
9
|
30/32
|
|
M32*1.5
|
FG-NBCG-M32-22
|
15-22
|
32
|
10
|
35
|
|
M33*1.5
|
FG-NBCG-M33-22
|
15-22
|
33
|
10
|
35
|
|
M36*1.5
|
FG-NBCG-M36-25
|
18-25
|
36
|
10
|
40
|
|
M37*1.5
|
FG-NBCG-M37-25
|
18-25
|
37
|
10
|
40
|
|
M40*1.5
|
FG-NBCG-M40-30
|
22-30
|
40
|
11
|
45
|
|
M42*1.5
|
FG-NBCG-M42-30
|
22-30
|
42
|
11
|
45
|
|
M47*1.5
|
FG-NBCG-M47-33
|
25-33
|
47
|
11
|
50
|
|
M48*1.5
|
FG-NBCG-M48-33
|
25-33
|
48
|
11
|
50/52
|
|
M50*1.5
|
FG-NBCG-M50-38
|
32-38
|
50
|
13
|
57/55
|
|
M54*1.5
|
FG-NBCG-M54-38
|
32-38
|
54
|
13
|
57
|
|
M60*1.5
|
FG-NBCG-M60-44
|
37-44
|
60
|
14
|
64
|
|
M63*1.5
|
FG-NBCG-M63-44
|
37-44
|
63
|
14
|
64/68
|
|
M64*2
|
FG-NBCG-M64-44
|
37-44
|
64
|
14
|
64/68
|
|
M72*2
|
FG-NBCG-M72-52
|
42-52
|
72
|
16
|
78
|
|
M75*2
|
FG-NBCG-M75-52
|
42-52
|
75
|
16
|
78/80
|
|
M80*2
|
FG-NBCG-M80-62
|
55-62
|
80
|
18
|
88
|
|
M88*2
|
FG-NBCG-M88-70
|
65-70
|
88
|
18
|
94
|
|
M100*2
|
FG-NBCG-M100-84
|
78-84
|
100
|
20
|
110
|
PG Thread
|
Thread
|
Part No.
|
Cable Range(mm)
|
Thread OD(mm)
|
Thread Length(mm)
|
Spanner Size(mm)
|
|
PG7
|
FG-NBCG-PG7-6.5
|
3-6.5
|
12.5
|
7
|
14/15
|
|
PG9
|
FG-NBCG-PG9-8
|
4-8
|
15.2
|
8
|
17/18
|
|
PG11
|
FG-NBCG-PG11-10
|
5-10
|
18.6
|
8
|
20/21
|
|
PG13.5
|
FG-NBCG-PG13.5-12
|
6-12
|
20.4
|
8
|
22/23
|
|
PG16
|
FG-NBCG-PG16-14
|
10-14
|
22.5
|
9
|
24/25
|
|
PG19
|
FG-NBCG-PG19-14
|
10-14
|
25.0
|
9
|
24/27
|
|
PG21
|
FG-NBCG-PG21-18
|
13-18
|
28.3
|
9
|
30
|
|
PG25
|
FG-NBCG-PG25-22
|
15-22
|
32.0
|
10
|
35
|
|
PG29
|
FG-NBCG-PG29-25
|
18-25
|
37.0
|
11
|
40
|
|
PG36
|
FG-NBCG-PG36-33
|
25-33
|
47.0
|
11
|
50
|
|
PG42
|
FG-NBCG-PG42-38
|
32-38
|
54.0
|
13
|
57
|
|
PG48
|
FG-NBCG-PG48-44
|
37-44
|
59.3
|
14
|
64
|
|
PG63
|
FG-NBCG-PG63-52
|
42-52
|
72.0
|
16
|
78
|
G(PF) Thread
|
Thread
|
Part No.
|
Cable Range(mm)
|
Thread OD(mm)
|
Thread Length(mm)
|
Spanner Size(mm)
|
|
1/4″
|
FG-NBCG-G1/4
|
3-6.5
|
13.1
|
7
|
14
|
|
3/8″
|
FG-NBCG-G3/8
|
4-8
|
16.6
|
8
|
18
|
|
1/2″
|
FG-NBCG-G1/2
|
6-12
|
20.9
|
8
|
22/23
|
|
3/4″
|
FG-NBCG-G3/4
|
13-18
|
26.4
|
9
|
30
|
|
1″
|
FG-NBCG-G1
|
18-25
|
33.2
|
10
|
40
|
|
1-1/4″
|
FG-NBCG-G1-1/4
|
25-33
|
41.9
|
11
|
50
|
|
1-1/2″
|
FG-NBCG-G1-1/2
|
32-38
|
47.8
|
12
|
57/55
|
|
2″
|
FG-NBCG-G2
|
37-44
|
59.6
|
14
|
65
|
|
2-1/2″
|
FG-NBCG-G2-1/2
|
42-52
|
75.1
|
16
|
77
|
|
3″
|
FG-NBCG-G3
|
65-70
|
87.8
|
18
|
94
|
NPT Thread
|
Thread
|
Part No.
|
Cable Range(mm)
|
Thread OD(mm)
|
Thread Length(mm)
|
Spanner Size(mm)
|
|
1/4″
|
FG-NBCG-NPT1/4
|
3-6.5
|
13.1
|
7
|
14
|
|
3/8″
|
FG-NBCG-NPT3/8
|
4-8
|
16.6
|
8
|
18
|
|
1/2″
|
FG-NBCG-NPT1/2
|
6-12
|
21.2
|
8
|
22/23
|
|
3/4″
|
FG-NBCG-NPT3/4
|
13-18
|
26.5
|
9
|
30
|
|
1″
|
FG-NBCG-NPT1
|
18-25
|
33.2
|
10
|
40
|
|
1-1/4″
|
FG-NBCG-NPT1-1/4
|
25-33
|
41.9
|
11
|
50
|
|
1-1/2″
|
FG-NBCG-NPT1-1/2
|
32-38
|
48.0
|
12
|
57/55
|
|
2″
|
FG-NBCG-NPT2
|
37-44
|
60.0
|
14
|
65
|
|
2-1/2″
|
FG-NBCG-NPT2-1/2
|
42-52
|
72.6
|
16
|
77
|
|
3″
|
FG-NBCG-NPT3
|
65-70
|
88.6
|
18
|
94
|
Custom Service:
nickel plated brass cable gland custom service is workable for us. Like materials, packing quantity, packages, logo etc.
