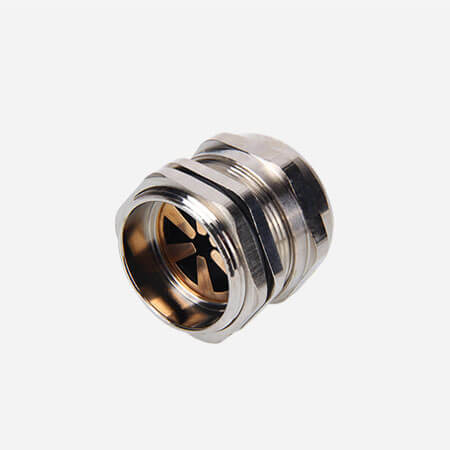

EMC Cable Gland
- PRODUCT DETAIL
Usage:
EMC cable gland can hold cable firmly and have a wider cable range. And also resistant to salt water, weak acid, alcohol, oil, grease and common solvency. Furthermore, emc cable gland can transfer the effect of EMI.

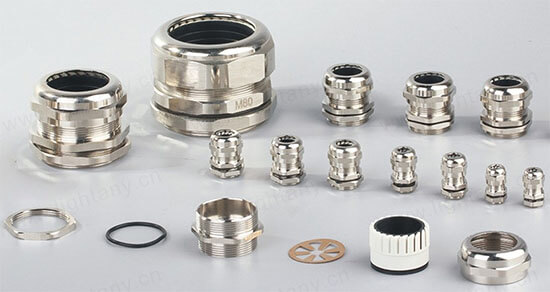

Structure:
EMC cable gland show
Size Chart:
Metric Thread
|
Thread
|
Part No.
|
Cable Range(mm)
|
Thread OD(mm)
|
Thread Length(mm)
|
Spanner Size(mm)
|
|
M10*1
|
FG-EMC-M10
|
3-6.5
|
10
|
6.5
|
14
|
|
M12*1.5
|
FG-EMC-M12
|
3-6.5
|
12
|
6.5
|
14
|
|
M14*1.5
|
FG-EMC-M14
|
4-8
|
14
|
8
|
17
|
|
M16*1.5
|
FG-EMC-M16
|
4-8
|
16
|
8
|
18
|
|
M18*1.5
|
FG-EMC-M18
|
5-10
|
18
|
8
|
20
|
|
M20*1.5
|
FG-EMC-M20
|
6-12
|
20
|
8
|
22
|
|
M22*1.5
|
FG-EMC-M22
|
10-14
|
22
|
8
|
24
|
|
M24*1.5
|
FG-EMC-M24
|
10-14
|
24
|
9
|
24/27
|
|
M25*1.5
|
FG-EMC-M25-14
|
10-14
|
25
|
9
|
24/27
|
|
FG-EMC-M25-18
|
13-18
|
25
|
9
|
30/27
|
|
|
M27*1.5
|
FG-EMC-M27
|
13-18
|
27
|
9
|
30
|
|
M28*1.5
|
FG-EMC-M28
|
13-18
|
28
|
9
|
30
|
|
M30*1.5
|
FG-EMC-M30
|
13-18
|
30
|
9
|
30/32
|
|
M32*1.5
|
FG-EMC-M32
|
15-22
|
32
|
10
|
35
|
|
M33*1.5
|
FG-EMC-M33
|
15-22
|
33
|
10
|
35/36
|
|
M36*1.5
|
FG-EMC-M36
|
18-25
|
36
|
10
|
40
|
|
M37*1.5
|
FG-EMC-M37
|
18-25
|
37
|
10
|
40
|
|
M40*1.5
|
FG-EMC-M40-25
|
18-25
|
40
|
11
|
40/45
|
|
FG-EMC-M40-30
|
22-30
|
40
|
11
|
45
|
|
|
M42*1.5
|
FG-EMC-M42
|
22-30
|
42
|
11
|
45
|
|
M47*1.5
|
FG-EMC-M47
|
25-33
|
47
|
11
|
50
|
|
M48*1.5
|
FG-EMC-M48
|
25-33
|
48
|
11
|
50/52
|
|
M50*1.5
|
FG-EMC-M50
|
32-38
|
50
|
12
|
57/55
|
|
M54*1.5
|
FG-EMC-M54
|
32-38
|
54
|
12
|
57
|
|
M60*1.5
|
FG-EMC-M60
|
37-44
|
60
|
13
|
64
|
|
M63*1.5
|
FG-EMC-M63
|
37-44
|
63
|
14
|
64/68
|
|
M64*2
|
FG-EMC-M64
|
37-44
|
64
|
14
|
64/68
|
|
M72*2
|
FG-EMC-M72
|
42-52
|
72
|
16
|
78
|
|
M75*2
|
FG-EMC-M75
|
42-52
|
75
|
16
|
78/80
|
|
M80*2
|
FG-EMC-M80
|
55-62
|
80
|
18
|
88
|
|
M88*2
|
FG-EMC-M88
|
62-70
|
88
|
18
|
94
|
|
M100*2
|
FG-EMC-M100
|
78-84
|
100
|
20
|
110
|
PG Thread
|
Thread
|
Part No.
|
Cable Range(mm)
|
Thread OD(mm)
|
Thread Length(mm)
|
Spanner Size(mm)
|
|
PG7
|
FG-EMC-PG7
|
3-6.5
|
12.5
|
6.5
|
14/15
|
|
PG9
|
FG-EMC-PG9
|
4-8
|
15.2
|
8
|
17/18
|
|
PG11
|
FG-EMC-PG11
|
5-10
|
18.6
|
8
|
20/21
|
|
PG13.5
|
FG-EMC-PG13.5
|
6-12
|
20.4
|
8
|
22/23
|
|
PG16
|
FG-EMC-PG16
|
10-14
|
22.5
|
9
|
24/25
|
|
PG19
|
FG-EMC-PG19
|
10-14
|
25.0
|
9
|
24/27
|
|
PG21
|
FG-EMC-PG21
|
13-18
|
28.3
|
9
|
30
|
|
PG25
|
FG-EMC-PG25
|
15-22
|
32.0
|
10
|
35
|
|
PG29
|
FG-EMC-PG29
|
18-25
|
37.0
|
10
|
40
|
|
PG36
|
FG-EMC-PG36
|
28-33
|
47.0
|
11
|
50
|
|
PG42
|
FG-EMC-PG42
|
32-18
|
54.0
|
13
|
57
|
|
PG48
|
FG-EMC-PG48
|
37-44
|
59.3
|
14
|
64
|
|
PG63
|
FG-EMC-PG63
|
42-52
|
72.0
|
16
|
78
|
G(PF) Thread
|
Thread
|
Part No.
|
Cable Range(mm)
|
Thread OD(mm)
|
Thread Length(mm)
|
Spanner Size(mm)
|
|
G1/2″
|
FG-EMC-G1/2
|
6-12
|
21.2
|
8
|
22/23
|
|
G3/4″
|
FG-EMC-G3/4
|
13-18
|
26.5
|
9
|
30
|
|
G1″
|
FG-EMC-G1
|
18-25
|
33.2
|
10
|
40
|
|
G1-1/4″
|
FG-EMC-G1-1/4
|
25-33
|
41.9
|
11
|
50
|
|
G1-1/2″
|
FG-EMC-G1-1/2
|
32-38
|
48.0
|
12
|
57/55
|
|
G2″
|
FG-EMC-G2
|
37-44
|
60.0
|
14
|
64
|
|
G2-1/2″
|
FG-EMC-G2-1/2
|
42-52
|
72.6
|
16
|
78
|
|
G3″
|
FG-EMC-G3
|
65-70
|
88.6
|
18
|
94
|
NPT Thread
|
Thread
|
Part No.
|
Cable Range(mm)
|
Thread OD(mm)
|
Thread Length(mm)
|
Spanner Size(mm)
|
|
NPT1/2″
|
FG-EMC-NPT1/2
|
6-12
|
20.9
|
8
|
22/23
|
|
NPT3/4″
|
FG-EMC-NPT3/4
|
13-18
|
26.4
|
9
|
30
|
|
NPT1″
|
FG-EMC-NPT1
|
18-25
|
33.2
|
10
|
40
|
|
NPT1-1/4″
|
FG-EMC-NPT1-1/4
|
25-33
|
41.9
|
11
|
50
|
|
NPT1-1/2″
|
FG-EMC-NPT1-1/2
|
32-38
|
47.8
|
12
|
57/55
|
|
NPT2″
|
FG-EMC-NPT2
|
37-44
|
59.6
|
14
|
64
|
|
NPT2-1/2″
|
FG-EMC-NPT2-1/2
|
42-52
|
75.1
|
16
|
78
|
|
NPT3″
|
FG-EMC-NPT3
|
65-70
|
87.8
|
18
|
94
|
Custom Service:
EMC cable gland custom service is workable for us. Like materials, packing quantity, packages, logo etc.
