Square Lock Metal Conduit
- PRODUCT DETAIL
Usage:
Square lock metal conduit is widely used in wire and cable protection. Especially in the machinery and instruments. It’s structure is square lock, also called single lock. Double lock metal conduit is also workable for us.
Structure:

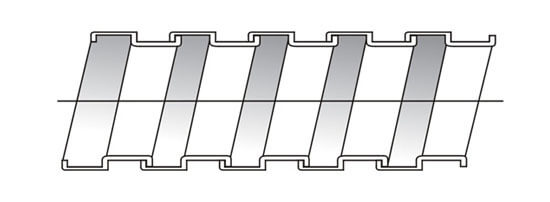

square lock metal conduit structure

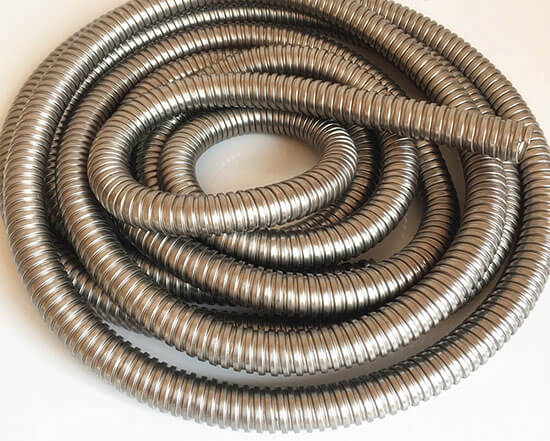

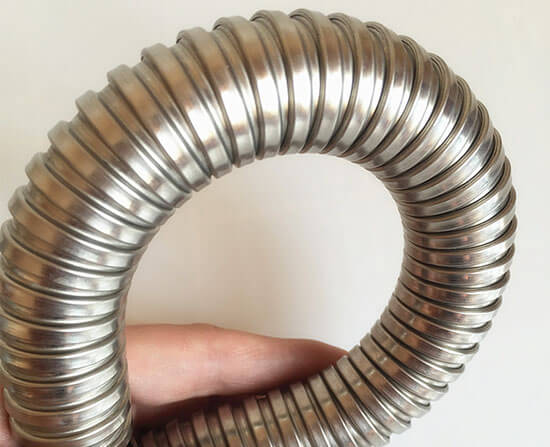

square lock metal conduit show

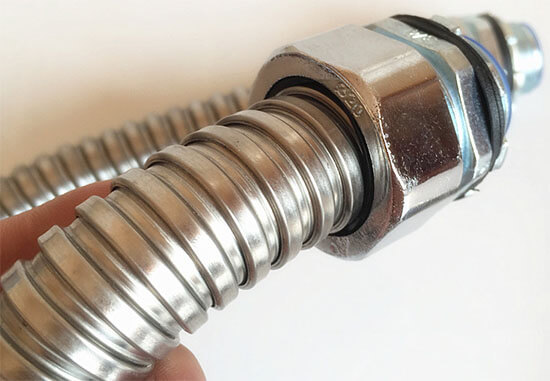

square lock metal conduit show

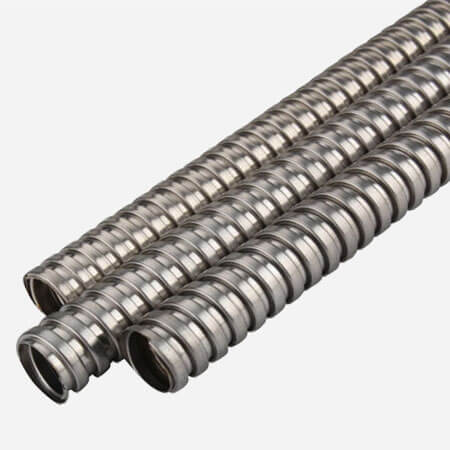

square lock metal conduit show
Size Chart:
|
Part No.
|
ID(mm)
|
ID(inch)
|
OD(mm)
|
Bending Radius(mm)
|
Packing Quantity(m)
|
|
FG-JS-3
|
3.0
|
–
|
5.0
|
25
|
25
|
|
FG-JS-4
|
4.0
|
–
|
6.0
|
30
|
25
|
|
FG-JS-5
|
5.0
|
–
|
7.0
|
35
|
25
|
|
FG-JS-6
|
6.0
|
3/16″
|
8.0
|
40
|
25
|
|
FG-JS-8
|
8.0
|
1/4″
|
10.0
|
45
|
20
|
|
FG-JS-10
|
10.0
|
5/16″
|
13.0
|
55
|
100
|
|
FG-JS-13
|
13.0
|
3/8″
|
16.0
|
65
|
100
|
|
FG-JS-16
|
16.0
|
1/2″
|
20.0
|
85
|
100
|
|
FG-JS-20
|
20.0
|
3/4″
|
25.0
|
100
|
50
|
|
FG-JS-25
|
25.0
|
1″
|
31.0
|
120
|
50
|
|
FG-JS-32
|
32.0
|
1-1/4″
|
39.0
|
150
|
25
|
|
FG-JS-38
|
38.0
|
1-1/2″
|
46.0
|
180
|
25
|
|
FG-JS-51
|
51.0
|
2″
|
60.0
|
220
|
20
|
|
FG-JS-64
|
64.0
|
2-1/2″
|
73.0
|
310
|
20
|
|
FG-JS-75
|
75.0
|
3″
|
88.0
|
350
|
20
|
|
FG-JS-100
|
100.0
|
4″
|
106.0
|
410
|
10
|
|
FG-JS-125
|
125.0
|
5″
|
132.0
|
460
|
5
|
|
FG-JS-150
|
150.0
|
6″
|
157.0
|
500
|
5
|
Custom Service:
Square lock metal conduit custom service is workable for us. Like cutting service, color, materials, packing quantity, packages, logo etc.
