Spiral Wire Wrap
- PRODUCT DETAIL
Usage:
Spiral wire wrap is widely used in wire and cable managements, with the best waterproof, durable, insulating properties.
Show:

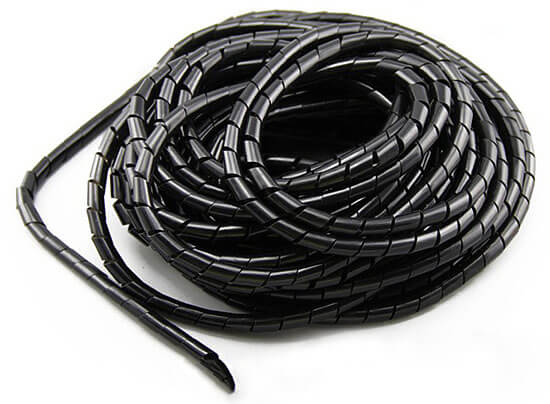

black spiral wire wrap

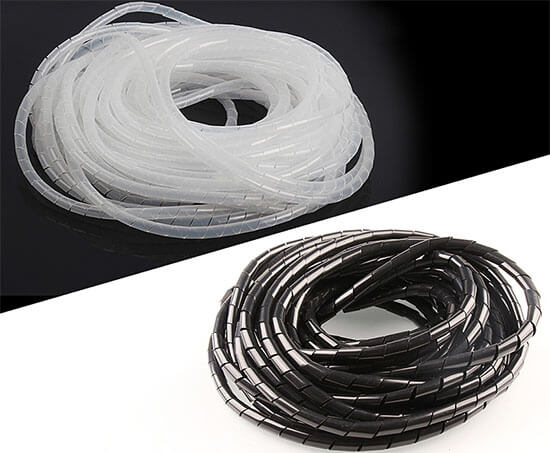

black and white spiral wire wrap

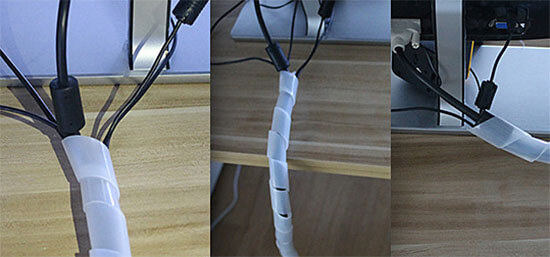

spiral wire wrap usage
Size Chart:

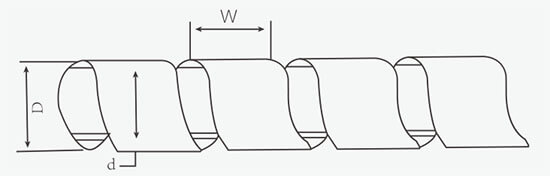

spiral wire wrap structure
|
Part No.
|
d(mm)
|
D(mm)
|
W(mm)
|
Bundle Diameter(mm)
|
|
FG-SWW-4
|
2
|
4
|
4.0
|
2-10
|
|
FG-SWW-6
|
4
|
6
|
7.0
|
4-50
|
|
FG-SWW-8
|
6
|
8
|
10.8
|
6-60
|
|
FG-SWW-10
|
7.5
|
10
|
11.4
|
7.5-60
|
|
FG-SWW-12
|
9
|
12
|
13.9
|
9-65
|
|
FG-SWW-15
|
12
|
15
|
15.0
|
12-75
|
|
FG-SWW-19
|
15
|
19
|
18.2
|
15-100
|
|
FG-SWW-24
|
20
|
24
|
19.6
|
20-130
|
|
FG-SWW-30
|
26
|
30
|
43.0
|
26-150
|
Custom Service:
Spiral wire wrap custom service is workable for us. Like color, materials, packing quantity, packages, logo etc.
