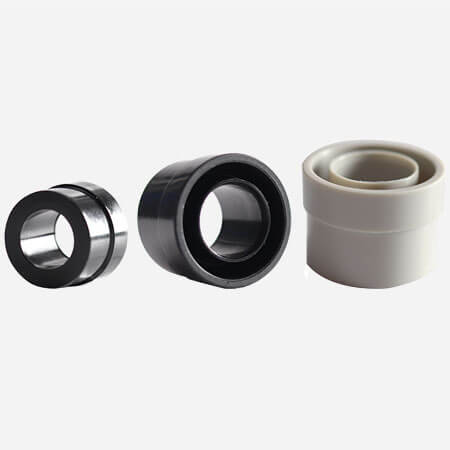

Nylon Flexible Metal Conduit Ends
- PRODUCT DETAIL
Usage:
Nylon flexible metal conduit ends are widely used to fix the ends of flexible metal conduit or PVC coated flexible conduit to protect wire and cables when go through conduit.
Structure:

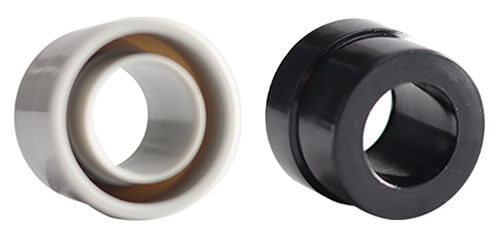

nylon flexible metal conduit ends show

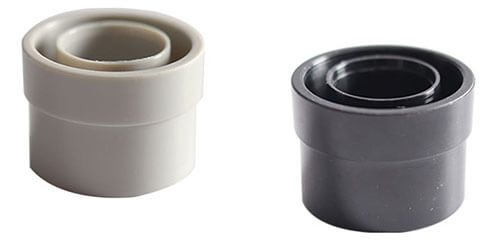

nylon flexible metal conduit ends show

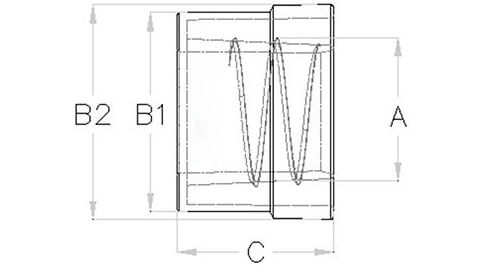

nylon flexible metal conduit ends structure
Size Chart:
|
Part No.
|
Matched Conduit ID
|
A(mm)
|
B1(mm) |
B2(mm)
|
C(mm)
|
| FG-NMEC-5/16 | 5/16″ | 6.2 | 20.0 | 20.5 | 20.0 |
| FG-NMEC-3/8 | 3/8″ | 10.8 | 20.0 | 20.5 | 21.0 |
| FG-NMEC-1/2 | 1/2″ | 14.2 | 25.0 | 26.0 | 24.0 |
| FG-NMEC-3/4 | 3/4″ | 18.0 | 30.5 | 31.5 | 26.0 |
| FG-NMEC-1 | 1″ | 23.5 | 36.0 | 38.0 | 31.0 |
| FG-NMEC-1-1/4 | 1-1/4″ | 32.5 | 45.0 | 40.0 | 33.0 |
| FG-NMEC-1-1/2 | 1-1/2″ | 37.0 | 52.0 | 53.0 | 36.0 |
| FG-NMEC-2 | 2″ | 49.0 | 64.5 | 65.0 | 36.0 |
Custom Service:
Nylon flexible metal conduit ends show custom service is workable for us. Like color, materials, packing quantity, packages, logo etc.
