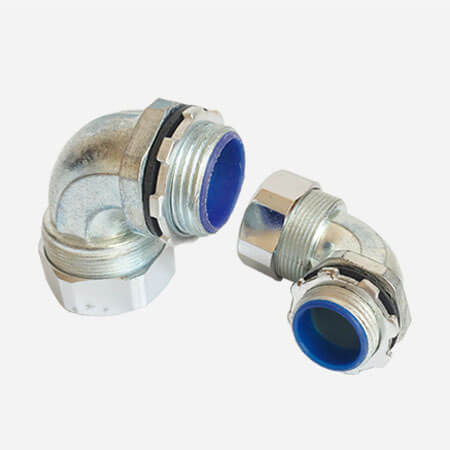

Metal Flexible Conduit Elbow
- PRODUCT DETAIL
Usage:
Metal flexible conduit elbow is widely used to connect flexible metal conduit or pvc coated flexible conduit. Default material is zinic alloy. In the market, elbwo default thread is G(PF), Metric. And NPT and PG thread could also custom by our factory.
Structure:

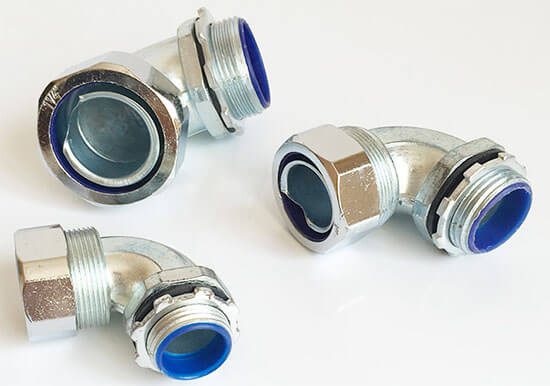

metal flexible conduit elbow show

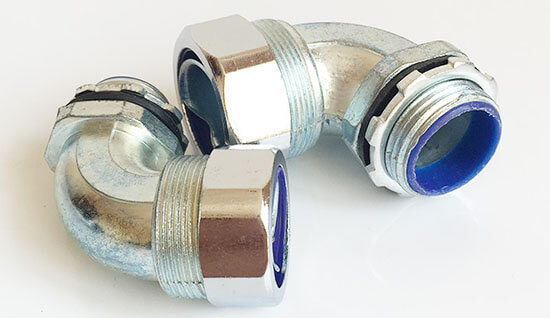

metal flexible conduit elbow show
Size Chart:
|
Part No.
|
Matched Conduit ID(inch)
|
Matched Conduit ID(mm)
|
Thread(default)
|
Thread OD(mm)
|
|
FG-DPZJSG-13
|
3/8″
|
DN13
|
M20*1.5
|
19.5
|
|
FG-DPZJSG-16
|
1/2″
|
DN16
|
G1/2″
|
20.5
|
|
FG-DPZJSG-20
|
3/4″
|
DN20
|
G3/4″
|
26
|
|
FG-DPZJSG-25
|
1″
|
DN25
|
G1″
|
32.7
|
|
FG-DPZJSG-32
|
1-1/4″
|
DN32
|
G1-1/4″
|
41.4
|
|
FG-DPZJSG-38
|
1-1/2″
|
DN38
|
G1-1/2″
|
47.3
|
|
FG-DPZJSG-51
|
2″
|
DN51
|
G2″
|
59.1
|
|
FG-DPZSG-64
|
2-1/2″
|
DN64
|
G2-1/2″
|
74.7
|
|
FG-DPZJSG-75
|
3″
|
DN75
|
G3″
|
87.4
|
|
FG-DPZJSG-100
|
4″
|
DN100
|
G4″
|
112.5
|
Custom Service:
Metal flexible conduit elbow custom service is workable for us. Like thread, materials, packing quantity, packages, logo etc.
