Double Split Loom Tubing
- PRODUCT DETAIL
Usage:
Double split loom tubing also called double deck split flexible conduit, or split duct. It is used in wire and cable protection. Compared the general split loom tubing, it is stabler and durabler, and also easy to put the put the wire in and take out.
Show:

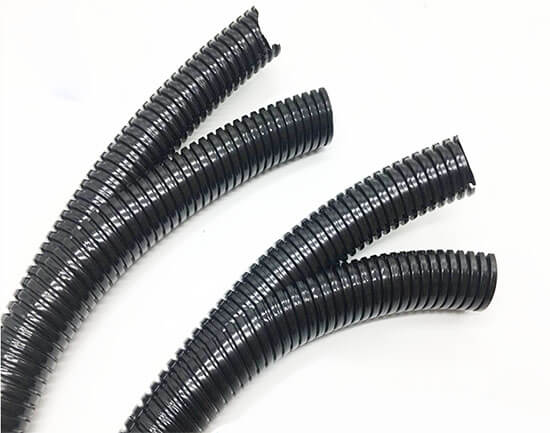

double split loom tubing structure

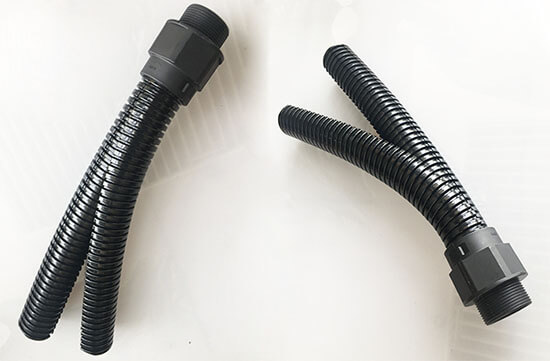

double split loom tubing with connectors
Size Chart:
|
Part No.
|
Inner Diameter(mm)
|
Outer Diameter(mm)
|
Bending Radius(mm)
|
Packing Quantity(m)
|
|
FG-DSC-PA10
|
8.9
|
13.8
|
55
|
50
|
|
FG-DSC-PA13
|
12.8
|
18.7
|
75
|
50
|
|
FG-DSC-PA20
|
20.0
|
25.8
|
105
|
50
|
|
FG-DSC-PA25
|
24.8
|
31.4
|
125
|
50
|
|
FG-DSC-PA32
|
31.4
|
41.9
|
170
|
50
|
|
FG-DSC-PA44
|
43.3
|
54.5
|
210
|
25
|
|
FG-DSC-PA67
|
67.0
|
80.0
|
230
|
25
|
Custom Service:
Double split loom tubing custom service is workable for us. Like color, materials, packing quantity, packages, logo etc.
