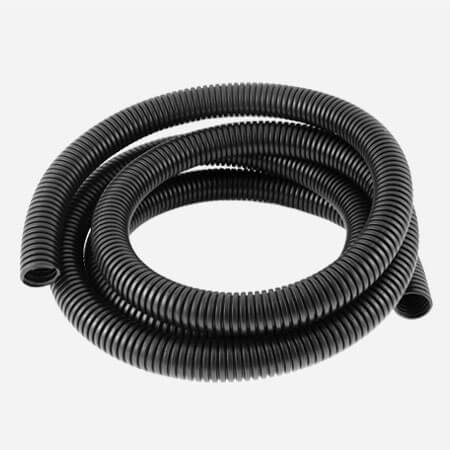

PE Corrugated Loom Tubing
- PRODUCT DETAIL
Usage:
Corrugated loom tubing is widely used in wire and cable protection. Especially in wiring harness. Due to the default material is polyethylene. It is also the most competitive wire loom tubing.

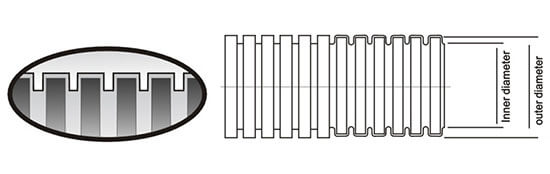

Structure:
corrugated loom tubing structure

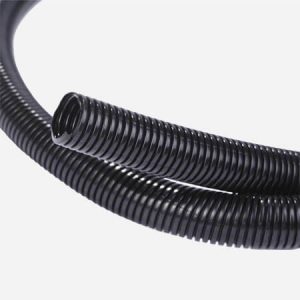

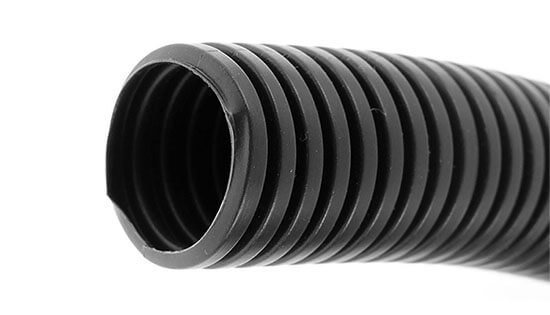

corrugated loom tubing details show
Size Chart:
|
Non-Split Part No.
|
Split Part No.
|
Inner Diameter
|
Outer Diamete
|
Bending Radius
|
Packing Quantity
|
|
FG-PE-7.0
|
FG-SPE-7.0
|
4.5mm(0.18″)
|
7.0mm(0.28″)
|
12m
|
200m/roll
|
|
FG-PE-10.0
|
FG-SPE-10.0
|
6.5mm(0.26″)
|
10.0mm(0.40″)
|
16m
|
100m/roll
|
|
FG-PE-11.6
|
FG-SPE-11.6
|
8.6mm(0.34″)
|
11.6mm(0.47″)
|
16m
|
100m/roll
|
|
FG-PE-13.0
|
FG-SPE-13.0
|
10.0mm(0.40″)
|
13.0mm(0.52″)
|
20m
|
100m/roll
|
|
FG-PE-14.0
|
FG-SPE-14.0
|
11.0mm(0.44″)
|
14.0mm(0.56″)
|
25m
|
100m/roll
|
|
FG-PE-15.8
|
FG-SPE-15.8
|
12.0mm(0.48″)
|
15.8mm(0.64″)
|
30m
|
100m/roll
|
|
FG-PE-18.5
|
FG-SPE-18.5
|
14.3mm(0.57″)
|
18.5mm(0.74″)
|
40m
|
100m/roll
|
|
FG-PE-20.0
|
FG-SPE-20.0
|
16.0mm(0.64″)
|
20.0mm(0.80″)
|
45m
|
100m/roll
|
|
FG-PE-21.2
|
FG-SPE-21.2
|
17.0mm(0.68″)
|
21.2mm(0.85″)
|
45m
|
100m/roll
|
|
FG-PE-25.0
|
FG-SPE-25.0
|
20.0mm(0.80″)
|
25.0mm(1″)
|
45m
|
100m/roll
|
|
FG-PE-28.5
|
FG-SPE-28.5
|
23.0mm(0.92)
|
28.5mm(1.14″)
|
50m
|
100m/roll
|
|
FG-PE-32.0
|
FG-SPE-32.0
|
25.0mm(1″)
|
32.0mm(1.28″)
|
55m
|
50m/roll
|
|
FG-PE-34.5
|
FG-SPE-34.5
|
29.0mm(1.16″)
|
34.5mm(1.38″)
|
60m
|
50m/roll
|
|
FG-PE-42.5
|
FG-SPE-42.5
|
36.0mm(1.44″)
|
42.5mm(1.70″)
|
70m
|
25m/roll
|
|
FG-PE-54.5
|
FG-SPE-54.5
|
48.0mm(1.92″)
|
54.5mm(2.18″)
|
90m
|
25m/roll
|
|
FG-PE-67.2
|
FG-SPE-67.2
|
56.3mm(2.25″)
|
67.2mm(2.69″)
|
130m
|
25m/roll
|
|
FG-PE-80.0
|
FG-SPE-80.0
|
66.5mm(2.66″)
|
80.0mm(3.20″)
|
170m
|
20m/roll
|
|
FG-PE-106.0
|
FG-SPE-106.0
|
91.0mm(3.64″)
|
106.0mm(4.24″)
|
225m
|
20m/roll
|

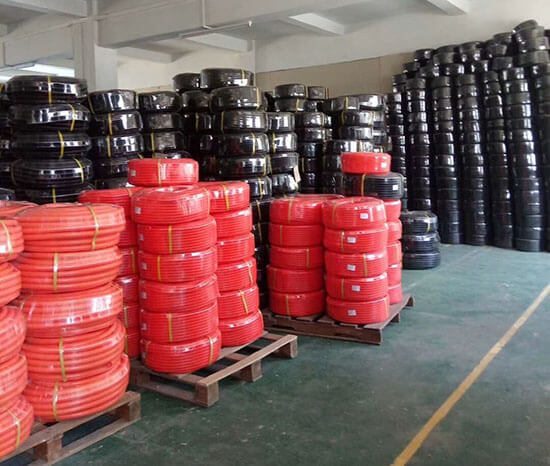

Packages:
corrugated loom tubing packages show
Custom Service:
Corrugated loom tubing customizable service is workable for us. Like split or not, color, materials, packing quantity, packages, logo etc.
