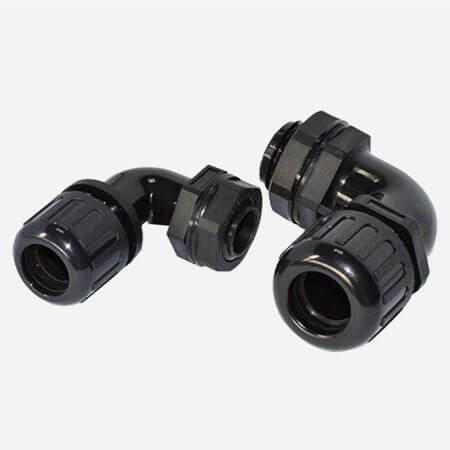

Waterproof Plastic Elbow Connectors
- PRODUCT DETAIL
Usage:
Waterproof plastic elbow connectors are widely used in wire and cable protection industry. To connect plastic flexible conduit with others(always machine). The protection level can reach IP68 with the best waterproof property.
Structure:

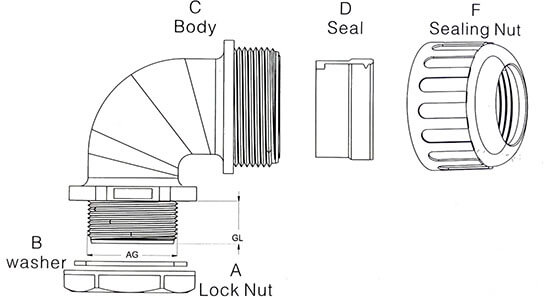

waterproof plastic elbow connectors structure

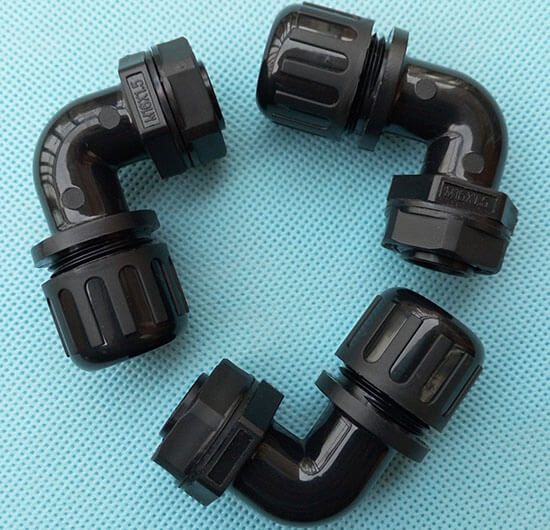

waterproof plastic elbow connectors show
Size Chart:
Metric Thread:
|
Conduit Inch Size
|
Conduit I.D.*O.D. |
Thread
|
Part No.
|
| 3/8″ | 10mm*13mm |
M16*1.5
|
EWTF-M16-13.0
|
| 1/2″ | 12mm*15.8mm |
M20*1.5
|
EWTF-M20-15.8
|
| – | 14.3mm*18.5mm |
M20*1.5
|
EWTF-M20-18.5
|
| 5/8″ | 17mm*21.2mm |
M20*1.5
|
EWTF-M20-21.2
|
| 5/8″ | 17mm*21.2mm |
M25*1.5
|
EWTF-M25-21.2
|
| 3/4″ | 20mm*25mm |
M25*1.5
|
EWTF-M25-25.0
|
| 7/8″ | 24.3mm*28.5mm |
M25*1.5
|
EWTF-M25-28.5
|
| 1″ | 28mm*34.5mm |
M32*1.5
|
EWTF-M32-34.5
|
| 1-1/2″ | 36mm*42.5mm |
M40*1.5
|
EWTF-M40-42.5
|
Size Chart:
Waterproof plastic elbow connectors custom service is workable for us. Like color, materials, packing quantity, packages, logo etc.
