Waterproof Plastic Connectors
- PRODUCT DETAIL
Usage:
Waterproof plastic connector is widely used in wire and cable protection industry. To connect plastic flexible conduit with others(always machine). The protection level can reach IP68 with the best waterproof property.
Structure:

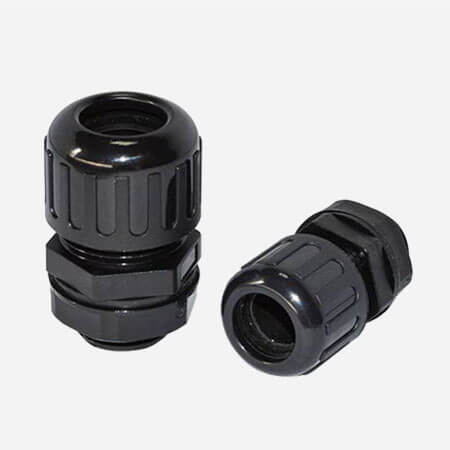

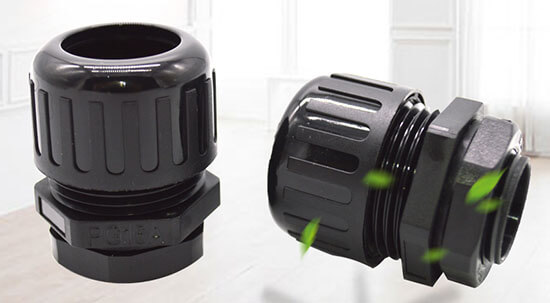

waterproof plastic connectors

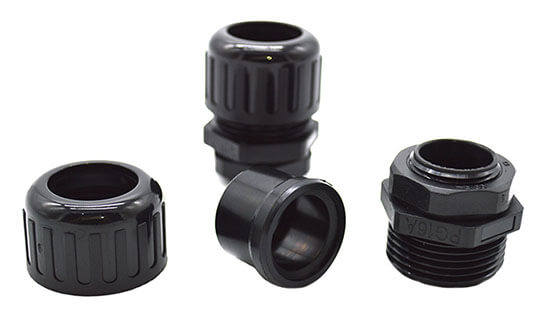

waterproof plastic connectors structure

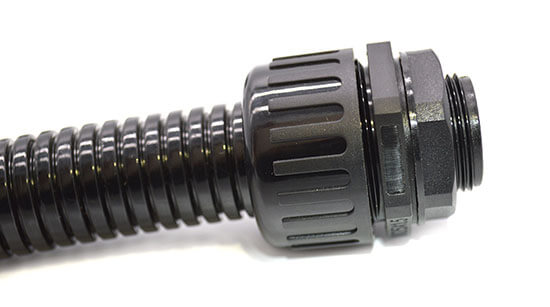

waterproof plastic connector with nylon flexible conduit
Size Chart:
Metric Thread:
|
Matched Conduit
|
Part No.
|
Thread
|
Thread Length
|
|
|
I.D.*O.D.
|
Inch Size
|
|||
|
7mm*10mm
|
1/4″ |
WTF-M12-10.0
|
M12*1.5
|
9mm
|
|
10mm*13mm
|
3/8″ |
WTF-M16-13.0
|
M16*1.5
|
15mm
|
|
12mm*15.8mm
|
1/2″ |
WTF-M16-15.8
|
M16*1.5
|
15mm
|
|
WTF-M20-15.8
|
M20*1.5
|
15mm
|
||
|
WTF-M22-15.8
|
M22*1.5
|
15mm
|
||
|
14.3mm*18.5mm
|
– |
WTF-M16-18.5
|
M16*1.5
|
15mm
|
|
WTF-M20-18.5
|
M20*1.5
|
15mm
|
||
|
WTF-M22-18.5
|
M22*1.5
|
15mm
|
||
|
17mm*21.2mm
|
5/8″ |
WTF-M20-21.2
|
M20*1.5
|
15mm
|
|
WTF-M25-21.2
|
M25*1.5
|
15mm
|
||
|
20mm*25mm
|
3/4″ |
WTF-M25-25.0
|
M25*1.5
|
15mm
|
|
24.3mm*28.5mm
|
7/8″ |
WTF-M25-28.5
|
M25*1.5
|
15mm
|
|
28mm*34.5mm
|
1″ |
WTF-M32-34.5
|
M32*1.5
|
15mm
|
|
36mm*42.5mm
|
1-1/2″ |
WTF-M40-42.5
|
M40*1.5
|
15mm
|
|
WTF-M50-42.5
|
M50*1.5
|
15mm
|
||
|
48mm*54.5mm
|
2″
|
WTF-M50-54.5
|
M50*1.5
|
22mm
|
|
WTF-M63-54.5
|
M63*1.5
|
25mm
|
||
PG Thread:
|
Matched Conduit
|
Part No.
|
Thread
|
Thread Length
|
|
|
I.D.*O.D.
|
Inch Size
|
|||
|
7mm*10mm
|
1/4″ |
WTF-PG7-10.0
|
PG7
|
9mm
|
|
WTF-PG9-10.0
|
PG9
|
9mm
|
||
|
10mm*13mm
|
3/8″ |
WTF-PG9-13.0
|
PG9
|
9mm
|
|
WTF-PG11-13.0
|
PG11
|
10mm
|
||
|
12mm*15.8mm
|
1/2″ |
WTF-PG11-15.8
|
PG11
|
10mm
|
|
WTF-PG13.5-15.8
|
PG13.5
|
10mm
|
||
|
WTF-PG16-15.8
|
PG16
|
10.8mm
|
||
|
14.3mm*18.5mm
|
– |
WTF-PG11-18.5
|
PG11
|
10mm
|
|
WTF-PG13.5-18.5
|
PG13.5
|
10mm
|
||
|
WTF-PG16-18.5
|
PG16
|
10.8mm
|
||
|
17mm*21.2mm
|
5/8″ |
WTF-PG16-21.2
|
PG16
|
13mm
|
|
WTF-PG21-21.2
|
PG21
|
13mm
|
||
|
20mm*25mm
|
3/4″ |
WTF-PG21-25.0
|
PG21
|
13mm
|
|
24.3mm*28.5mm
|
7/8″ |
WTF-PG21-28.5
|
PG21
|
13mm
|
|
28mm*34.5mm
|
1″ |
WTF-PG29-34.5
|
PG29
|
13mm
|
|
36mm*42.5mm
|
1-1/2″ |
WTF-PG36-42.5
|
PG36
|
13mm
|
|
48mm*54.5mm
|
2″ |
WTF-PG48-54.5
|
PG48
|
16mm
|
G(PF) Thread:
|
Matched Conduit
|
Part No.
|
Thread
|
Thread Length
|
|
|
I.D.*O.D.
|
Inch Size
|
|||
|
10mm*13mm
|
3/8″ |
WTF-PF3/8-13.0
|
G(PF)3/8
|
15mm
|
|
12mm*15.8mm
|
1/2″ |
WTF-PF3/4-15.8
|
G(PF)3/4
|
15mm
|
|
WTF-PF1/2-15.8
|
G(PF)1/2
|
15mm
|
||
|
14.3mm*18.5mm
|
– |
WTF-PF3/4-18.5
|
G(PF)3/4
|
15mm
|
|
17mm*21.2mm
|
5/8″ |
WTF-PF1/2-21.2
|
G(PF)1/2
|
15mm
|
|
WTF-PF3/4-21.2
|
G(PF)3/4
|
15mm
|
||
|
20mm*25mm
|
3/4″ |
WTF-PF3/4-25.0
|
G(PF)3/4
|
15mm
|
|
24.3mm*28.5mm
|
7/8″ |
WTF-PF3/4-28.5
|
G(PF)3/4
|
15mm
|
|
28mm*34.5mm
|
1″ |
WTF-PF1-34.5
|
G(PF)1
|
15mm
|
|
36mm*42.5mm
|
1-1/2″ |
WTF-PF1-1/4-42.5
|
G(PF)1-1/4
|
15mm
|
|
WTF-PF1-1/2-42.5
|
G(PF)1-1/2
|
15mm
|
||
|
48mm*54.5mm
|
2″ |
WTF-PF1-1/2-54.5
|
G(PF)1-1/2
|
15mm
|
Custom Service:
Waterproof plastic connectors custom service is workable for us. Like color, materials, packing quantity, packages, logo etc.
