PTFE Heat Shrink Tubing
- PRODUCT DETAIL
Usage:
PTFE heat shrink tubing is widely used in electronic facilities wiring system. Especially in the requirements of waterproof, repairment of wire and cables, wire connections and other industrial field. Compared to other heat shrink tubing, PTFE heat shrink tubing have better resistant ability to corrosion, strong acid, chemical reagents and oil.
Show:

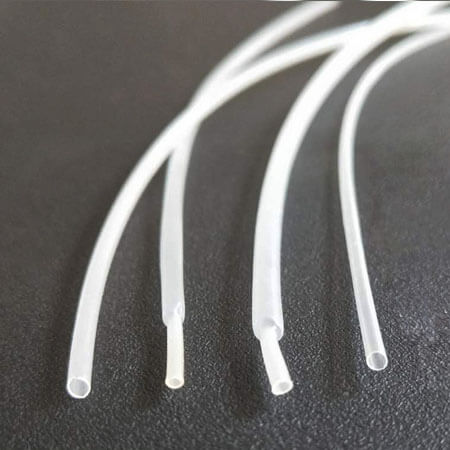

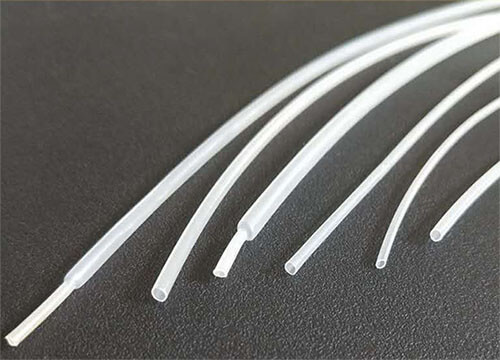

PTFE heat shrink tubing details

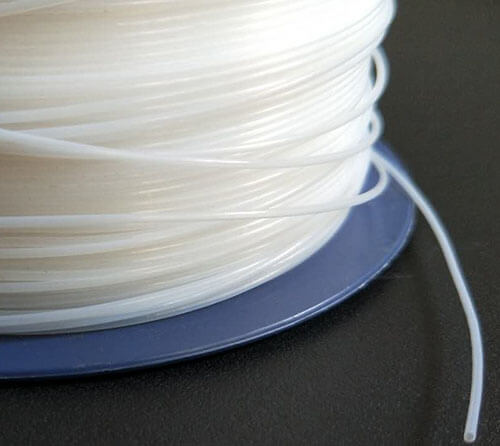

PTFE heat shrink tubing roll
Size Chart:
1.7:1 PTFE heat shrink tubing
|
Types(mm)
|
Before Shrink(mm)
|
Shrink After(mm)
|
Length per Roll(m)
|
||
|
Inner Diameter
|
Thickness
|
Inner Diameter
|
Thickness
|
||
|
FG-PTFE-Φ0.5
|
0.7±0.2 | 0.15±0.05 | ≤0.40 | 0.25±0.05 |
200
|
| FG-PTFE-Φ1.0 | 1.0±0.2 | 0.15±0.05 | ≤0.50 | 0.25±0.05 |
200
|
| FG-PTFE-Φ1.5 | 1.5±0.2 | 0.20±0.05 | ≤0.90 | 0.25±0.05 |
200
|
| FG-PTFE-Φ2.0 | 2.0±0.2 | 0.20±0.05 | ≤1.30 | 0.30±0.05 |
200
|
| FG-PTFE-Φ2.5 | 2.5±0.2 | 0.20±0.05 | ≤1.50 | 0.30±0.05 |
200
|
| FG-PTFE-Φ3.0 | 3.0±0.2 | 0.20±0.05 | ≤1.80 | 0.30±0.05 |
200
|
| FG-PTFE-Φ3.5 | 3.5±0.2 | 0.20±0.05 | ≤2.0 | 0.30±0.05 |
200
|
| FG-PTFE-Φ3.8 | 3.8±0.2 | 0.20±0.05 | ≤2.0 | 0.30±0.05 | 200 |
| FG-PTFE-Φ4.0 | 4.0±0.3 | 0.20±0.05 | ≤2.5 | 0.30±0.05 |
200
|
| FG-PTFE-Φ4.5 | 4.5±0.3 | 0.20±0.05 | ≤2.8 | 0.30±0.05 |
200
|
| FG-PTFE-Φ5.0 | 5.0±0.3 | 0.20±0.05 | ≤3.0 | 0.30±0.05 |
200
|
| FG-PTFE-Φ6.0 | 6.0±0.3 | 0.25±0.05 | ≤3.8 | 0.38±0.05 |
100
|
| FG-PTFE-Φ7.0 | 7.0±0.3 | 0.25±0.05 | ≤4.0 | 0.38±0.05 |
100
|
| FG-PTFE-Φ8.5 | 8.5±0.3 | 0.25±0.05 | ≤4.8 | 0.38±0.05 |
100
|
| FG-PTFE-Φ9.4 | 9.0±0.3 | 0.25±0.05 | ≤5.0 | 0.38±0.05 |
100
|
| FG-PTFE-Φ10.0 | 10.0±0.3 | 0.25±0.05 | ≤6.0 | 0.38±0.05 |
100
|
| FG-PTFE-Φ12.0 | 12.0±0.3 | 0.25±0.05 | ≤7.0 | 0.38±0.05 |
100
|
3.5:1 PTFE heat shrink tubing
|
Types(mm)
|
Before Shrink(mm)
|
Shrink After(mm)
|
Length per Roll(m)
|
||
|
Inner Diameter
|
Thickness
|
Inner Diameter
|
Thickness
|
||
| FG-PTFE4-Φ2.0 | 2.0±0.25 | 0.20±0.05 | ≤0.57 | 0.20±0.05 |
100
|
| FG-PTFE4-Φ2.5 | 2.5±0.25 | 0.20±0.05 | ≤0.67 | 0.20±0.05 |
100
|
| FG-PTFE4-Φ3.0 | 3.0±0.25 | 0.20±0.05 | ≤0.86 | 0.20±0.05 |
100
|
| FG-PTFE4-Φ3.5 | 3.5±0.25 | 0.20±0.05 | ≤1.00 | 0.20±0.05 |
100
|
| FG-PTFE4-Φ4.0 | 4.0±0.25 | 0.20±0.05 | ≤1.14 | 0.20±0.05 |
100
|
| FG-PTFE4-Φ4.5 | 4.5±0.25 | 0.20±0.05 | ≤1.28 | 0.20±0.05 |
100
|
| FG-PTFE4-Φ5.0 | 5.0±0.25 | 0.20±0.05 | ≤1.43 | 0.20±0.05 |
100
|
Custom Service:
PTFE heat shrink tubing customizable service is workable for us. Like color, packing quantity, packages, logo etc.
