Plastic Flexible Conduit Clamps
- PRODUCT DETAIL
Usage:

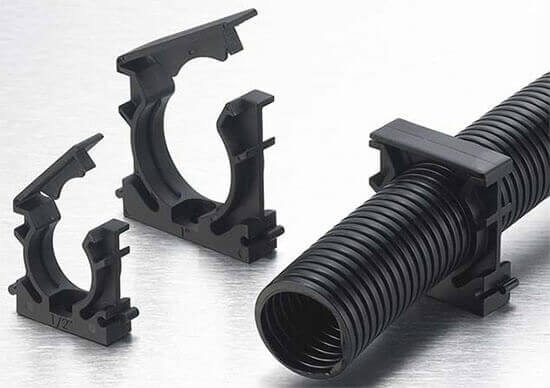

Plastic flexible conduit clamps also called plastic conduit clips, or bracket for plastic conduit. They are widely used in wire and cable protection industry, to fix and hold the plastic flexible conduit. We have two kinds of plastic flexible conduit clamps are as follows.
Type 1 Show:

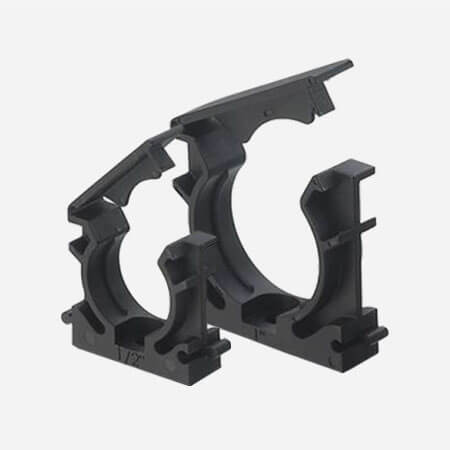

type 1 plastic flexible conduit clamps
Size 1 Chart:
|
Part No.
|
Matched Conduit(inch)
|
Matched Conduit O.D.
|
|
FG-PCC-10A
|
1/4″
|
10.0mm
|
|
FG-PCC-13A
|
3/8″
|
13.0mm
|
|
FG-PCC-15A
|
1/2″
|
15.8mm
|
|
FG-PCC-18A
|
–
|
18.5mm
|
|
FG-PCC-21A
|
5/8″
|
21.2mm
|
|
FG-PCC-25A
|
3/4″
|
25.0mm
|
|
FG-PCC-28A
|
7/8″
|
28.5mm
|
|
FG-PCC-34A
|
1″
|
34.5mm
|
|
FG-PCC-42A
|
1-1/2″
|
42.5mm
|
|
FG-PCC-54A
|
2″
|
54.5mm
|
Type 2 Show:

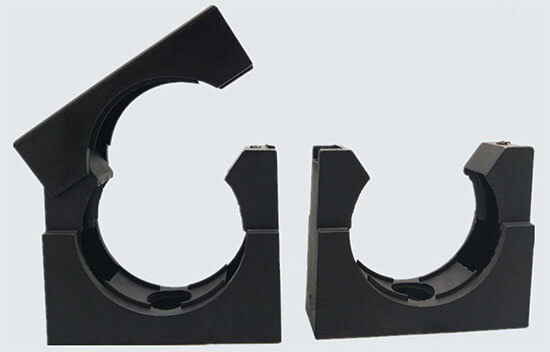

type 2 plastic flexible conduit clamps
Size Chart:
|
Part No.
|
Matched Conduit(inch)
|
Matched Conduit O.D.
|
|
FG-PCC-10B
|
1/4″
|
10.0mm
|
|
FG-PCC-13B
|
3/8″
|
13.0mm
|
|
FG-PCC-15B
|
1/2″
|
15.8mm
|
|
FG-PCC-18B
|
–
|
18.5mm
|
|
FG-PCC-21B
|
5/8″
|
21.2mm
|
|
FG-PCC-25B
|
3/4″
|
25.0mm
|
|
FG-PCC-28B
|
7/8″
|
28.5mm
|
|
FG-PCC-32B
|
–
|
32.0mm
|
|
FG-PCC-34B
|
1″
|
34.5mm
|
|
FG-PCC-42B
|
1-1/2″
|
42.5mm
|
|
FG-PCC-54B
|
2″
|
54.5mm
|
Custom Service:
Plastic flexible conduit clamps custom service is workable for us. Like color, materials, packing quantity, packages, logo etc.
