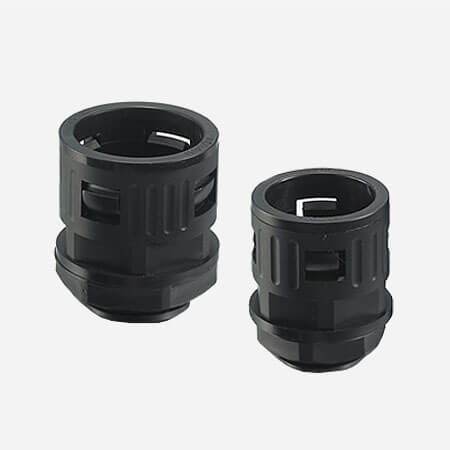

Plastic Quick Connector
- PRODUCT DETAIL
Usage:
Plastic quick conduit connector is widely used in wire and cable protection industry. To connect plastic flexible conduit with others(always machine). The protection level can reach IP68 with available waterproof ring.
Structure:

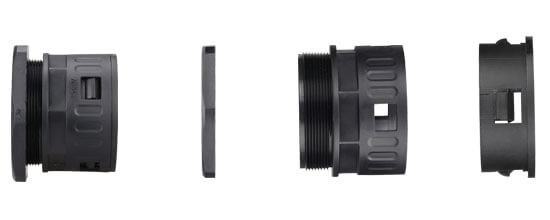

plastic quick conduit connector

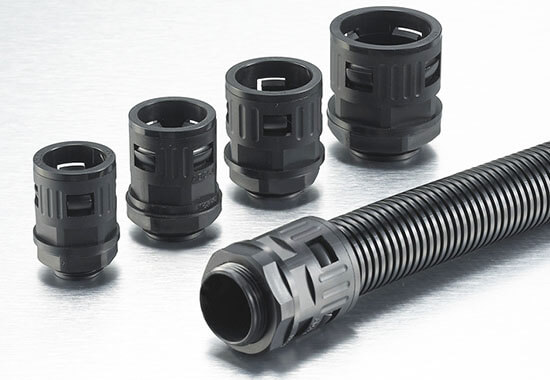

plastic quick conduit connector with plastic flexible conduit
Size Chart:
Metric Thread:
|
Matched Conduit OD
|
Part No.
|
Thread
|
Packing Quantity
|
|
|
I.D.*O.D.
|
Inch Size
|
|||
|
7mm*10mm
|
1/4″
|
QTF-M12-10.0
|
M12*1.5
|
50pcs
|
|
10mm*13mm
|
3/8″
|
QTF-M12-13.0
|
M12*1.5
|
50pcs
|
|
QTF-M16-13.0
|
M16*1.5
|
50pcs
|
||
|
QTF-M18-13.0
|
M18*1.5
|
50pcs
|
||
|
12mm*15.8mm
|
1/2″
|
QTF-M16-15.8
|
M16*1.5
|
50pcs
|
|
QTF-M18-15.8
|
M18*1.5
|
50pcs
|
||
|
QTF-M20-15.8
|
M20*1.5
|
50pcs
|
||
|
14.3mm*18.5mm
|
–
|
QTF-M20-18.5
|
M20*1.5
|
50pcs
|
|
QTF-M22-18.5
|
M22*1.5
|
50pcs
|
||
|
17mm*21.2mm
|
5/8″
|
QTF-M20-21.2
|
M20*1.5
|
50pcs
|
|
QTF-M24-21.2
|
M24*1.5
|
50pcs
|
||
|
QTF-M25-21.2
|
M25*1.5
|
50pcs
|
||
|
20mm*25mm
|
3/4″
|
QTF-M25-25.0
|
M25*1.5
|
50pcs
|
|
24.3mm*28.5mm
|
7/8″
|
QTF-M25-28.5
|
M25*1.5
|
50pcs
|
|
QTF-M27-28.5
|
M27*1.5
|
50pcs
|
||
|
QTF-M30-28.5
|
M30*1.5
|
50pcs
|
||
|
QTF-M32-28.5
|
M32*1.5
|
50pcs
|
||
|
28mm*34.5mm
|
1″
|
QTF-M32-34.5
|
M32*1.5
|
20pcs
|
|
QTF-M36-34.5
|
M36*1.5
|
20pcs
|
||
|
QTF-M40-34.5
|
M40*1.5
|
20pcs
|
||
|
36mm*42.5mm
|
1-1/2″
|
QTF-M40-42.5
|
M40*1.5
|
10pcs
|
|
QTF-M48-42.5
|
M48*1.5
|
10pcs
|
||
|
48mm*54.5mm
|
2″
|
QTF-M50-54.5
|
M50*1.5
|
10pcs
|
|
QTF-M63-54.5
|
M63*1.5
|
10pcs
|
||
PG Thread:
|
Matched Conduit OD
|
Part No.
|
Thread
|
Packing Quantity
|
|
|
I.D.*O.D.
|
Inch Size
|
|||
|
7mm*10mm
|
1/4″
|
QTF-PG7-10.0
|
PG7
|
50pcs
|
|
10mm*13mm
|
3/8″
|
QTF-PG9-13.0
|
PG9
|
50pcs
|
|
12mm*15.8mm
|
1/2″
|
QTF-PG11-15.8
|
PG11
|
50pcs
|
|
14.3mm*18.5mm
|
–
|
QTF-PG13.5-18.5
|
PG13.5
|
50pcs
|
|
17mm*21.2mm
|
5/8″
|
QTF-PG16-21.2
|
PG16
|
50pcs
|
|
24.3mm*28.5mm
|
7/8″
|
QTF-PG21-28.5
|
PG21
|
50pcs
|
|
28mm*34.5mm
|
1″
|
QTF-PG29-34.5
|
PG29
|
20pcs
|
|
36mm*42.5mm
|
1-1/2″
|
QTF-PG36-42.5
|
PG36
|
10pcs
|
|
48mm*54.5mm
|
2″
|
QTF-PG42-54.5
|
PG42
|
10pcs
|
|
QTF-PG48-54.5
|
PG48
|
10pcs
|
||
G(PF) Thread:
|
Matched Conduit
|
Part No.
|
Thread
|
Packing Quantity
|
|
|
I.D.*O.D.
|
Inch Size
|
|||
|
7mm*10mm
|
1/4″
|
QTF-G1/4-10.0
|
G(PF)1/4
|
50pcs
|
|
12mm*15.8mm
|
1/2″
|
QTF-G3/8-15.8
|
G(PF)3/8
|
50pcs
|
|
QTF-G1/2-15.8
|
G(PF)1/2
|
50pcs
|
||
|
14.3mm*18.5mm
|
–
|
QTF-G1/2-18.5
|
G(PF)1/2
|
50pcs
|
|
17mm*21.2mm
|
5/8″
|
QTF-G1/2-21.2
|
G(PF)1/2
|
50pcs
|
|
QTF-G3/4-21.2
|
G(PF)3/4
|
50pcs
|
||
|
24.3mm*28.5mm
|
7/8″
|
QTF-G3/4-28.5
|
G(PF)3/4
|
50pcs
|
|
28mm*34.5mm
|
1″
|
QTF-G1-34.5
|
G(PF)1
|
20pcs
|
|
36mm*42.5mm
|
1-1/2″
|
QTF-G1-1/4-42.5
|
G(PF)1-1/4
|
10pcs
|
|
QTF-G1-1/2-42.5
|
G(PF)1-1/2
|
10pcs
|
||
|
48mm*54.5mm
|
2″
|
QTF-G1-1/2-54.5
|
G(PF)1-1/2
|
10pcs
|
|
QTF-G2-54.5
|
G(PF)2
|
10pcs
|
||
Custom Service:
Plastic quick conduit connector custom service is workable for us. Like color, materials, packing quantity, packages, logo etc.
