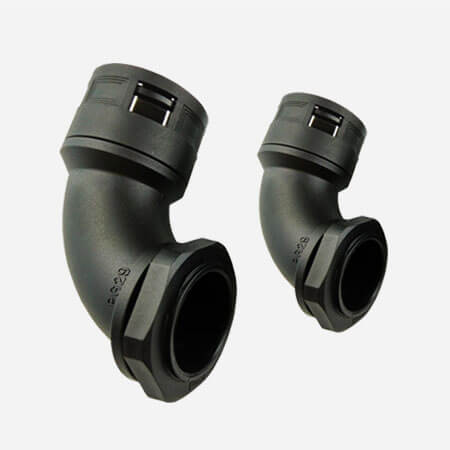

90 Degree Plastic Conduit Connectors
- PRODUCT DETAIL
Usage:
90 degree plastic conduit connector is a kind of plastic quick connector. It is used to connect plastic flexible conduit with others(always machine). It is widely used in wire and cable protection industry. The protection level can reach IP68 with available waterproof ring.
Structure:

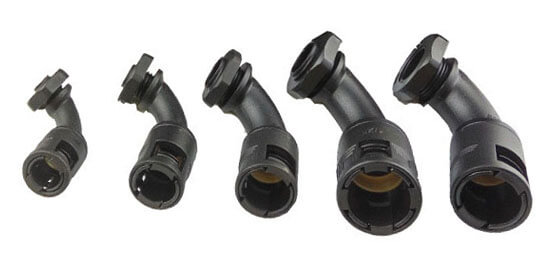

90 degree plastic conduit connector
Size Chart:
PG Thread:
|
Part No.
|
Matched Conduit(inch)
|
Matched Conduit O.D.
|
Thread
|
Packing Quantity
|
|
FG-10W
|
1/4″
|
10mm
|
PG7
|
100pcs/bag
|
|
FG-13W
|
3/8″
|
13mm
|
PG9
|
50pcs/bag
|
|
FG-15W
|
1/2″
|
15.8mm
|
PG11
|
50pcs/bag
|
|
FG-18W
|
–
|
18.5mm
|
PG13.5
|
50pcs/bag
|
|
FG-21W
|
5/8″
|
21.2mm
|
PG16
|
50pcs/bag
|
|
FG-25W
|
3/4″
|
25mm
|
PG21
|
25pcs/bag
|
|
FG-28W
|
7/8″
|
28.5mm
|
PG21
|
25pcs/bag
|
| FG-32W | – | 32.0mm | PG29 | 20pcs/bag |
|
FG-34W
|
1″
|
34.5mm
|
PG29
|
20pcs/bag
|
|
FG-42W
|
1-1/2″
|
42.5mm
|
PG36
|
20pcs/bag
|
|
FG-54W
|
2″
|
54.5mm
|
PG48
|
10pcs/bag
|
Metric Thread:
|
Part No.
|
Matched Conduit(inch)
|
Matched Conduit O.D.
|
Thread
|
Packing Quantity
|
|
FG-10WM
|
1/4″
|
10mm
|
M10*1.5 |
100pcs/bag
|
|
FG-13WM
|
3/8″
|
13mm
|
M12*1.5 |
50pcs/bag
|
|
FG-15WM
|
1/2″
|
15.8mm
|
M16*1.5 |
50pcs/bag
|
|
FG-18WM
|
–
|
18.5mm
|
M20*1.5 |
50pcs/bag
|
|
FG-21WM
|
5/8″
|
21.2mm
|
M20*1.5 |
50pcs/bag
|
|
FG-25WM
|
3/4″
|
25mm
|
M25*1.5 |
25pcs/bag
|
|
FG-28WM
|
7/8″
|
28.5mm
|
M25*1.5 |
25pcs/bag
|
|
FG-32WM
|
–
|
32mm
|
M32*1.5
|
20pcs/bag
|
|
FG-34WM
|
1″
|
34.5mm
|
M32*1.5 |
20pcs/bag
|
|
FG-42WM
|
1-1/2″
|
42.5mm
|
M40*1.5 |
20pcs/bag
|
|
FG-54WM
|
2″
|
54.5mm
|
M50*1.5 |
10pcs/bag
|
Custom Service:
90 degree plastic conduit connector custom service is workable for us. Like color, materials, packing quantity, packages, logo etc.
