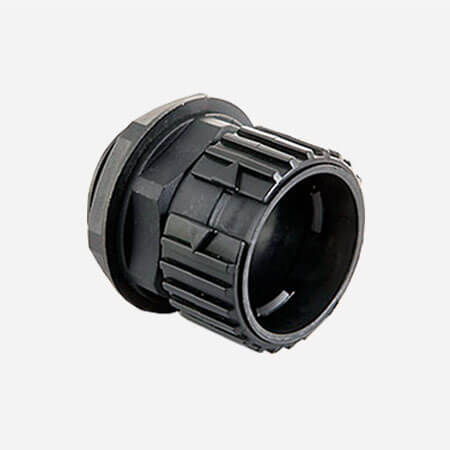

Openable Plastic Conduit Connector
- PRODUCT DETAIL
Usage:
Openable plastic conduit connector is a kind of plastic quick connector. It is used to connect plastic flexible conduit with plastic flexible conduit. It is widely used in wire and cable protection industry.
Compared the general plastic flexible conduit connector, it can be open and easier to fix plastic flexible conduit.
Show:

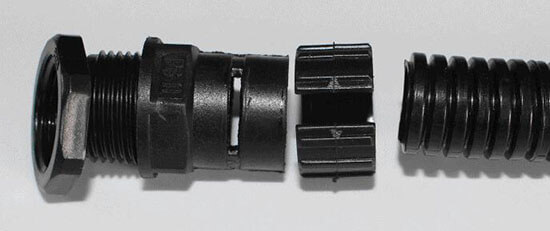

openable plastic conduit connector with conduit show

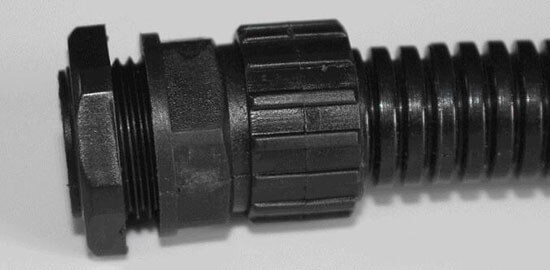

openable plastic conduit connector with conduit show

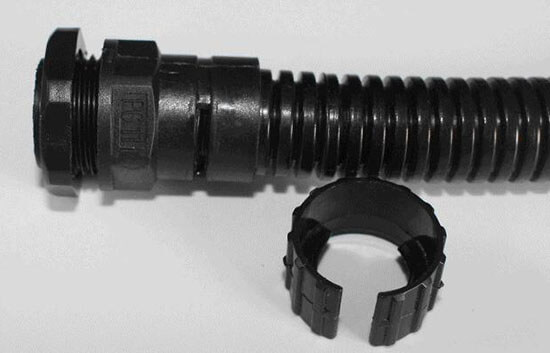

openable plastic conduit connector with conduit show
Size Chart:
Metric Thread
|
Part No.
|
Conduit Inch Size
|
Conduit I.D.*O.D.
|
Thread
|
|
FG-OCM1012
|
1/4″ |
7mm*10mm
|
M12*1.5
|
|
FG-OCM1316
|
3/8″ | 10mm*13mm |
M16*1.5
|
|
FG-OCM1618
|
1/2″ | 12mm*15.8mm |
M18*1.5
|
|
FG-OCM1820
|
– | 14.3mm*18.5mm |
M20*1.5
|
|
FG-OCM2120
|
5/8″ | 17mm*21.2mm |
M20*1.5
|
|
FG-OCM2124
|
5/8″ | 17mm*21.2mm |
M24*1.5
|
|
FG-OCM2525
|
3/4″ | 20mm*25mm |
M25*1.5
|
|
FG-OCM2827
|
7/8″ | 24.3mm*28.5mm |
M27*2.0
|
|
FG-OCM3432
|
1″ | 28mm*34.5mm |
M32*1.5
|
|
FG-OCM3436
|
1″ | 28mm*34.5mm |
M36*2.0
|
|
FG-OCM4248
|
1-1/2″ | 36mm*42.5mm |
M48*2.0
|
|
FG-OCM5460
|
2″ | 48mm*54.5mm |
M60*2.0
|
PG Thread
|
Part No.
|
Conduit Inch Size |
Conduit I.D.*O.D.
|
Thread
|
|
FG-OCP1007
|
1/4″ |
7mm*10mm
|
PG7
|
|
FG-OCP1309
|
3/8″ | 10mm*13mm |
PG9
|
|
FG-OCP1611
|
1/2″ | 12mm*15.8mm |
PG11
|
|
FG-OCP1813
|
– | 14.3mm*18.5mm |
PG13.5
|
|
FG-OCP2116
|
5/8″ | 17mm*21.2mm |
PG16
|
|
FG-OCP2821
|
– | 24.3mm*28.5mm |
PG21
|
|
FG-OCP3429
|
1″ | 28mm*34.5mm |
PG29
|
|
FG-OCP4236
|
1-1/2″ | 36mm*42.5mm |
PG36
|
|
FG-OCP5448
|
2″ | 48mm*54.5mm |
PG48
|
Custom Service:
Openable plastic conduit connector custom service is workable for us. Like color, materials, packing quantity, packages, logo etc.
