H Shape Connector
- PRODUCT DETAIL
Usage:
H shape connector is a kind of plastic quick connector. It is used to connect plastic flexible conduit with plastic flexible conduit. It is widely used in wire and cable protection industry. The protection level can reach IP66.
Structure:

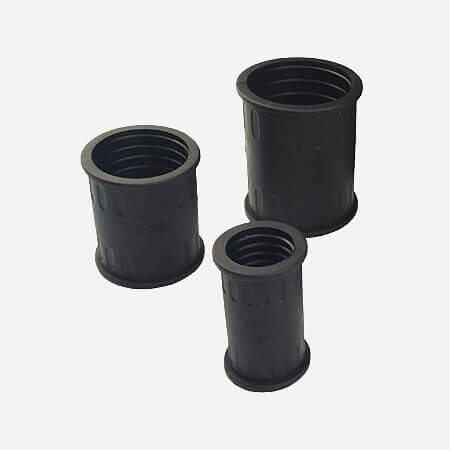

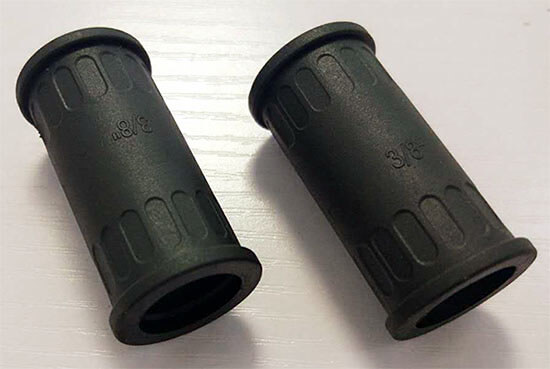

H shape connector show

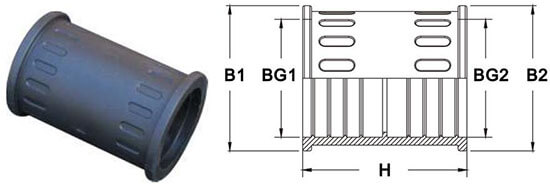

H shape connector structure show
Size Chart:
|
Part No.
|
Matched Conduit
|
OD
|
Length
|
||
|
I.D.*O.D.(inch size)
|
I.D.*O.D.(inch size)
|
B1
|
B2
|
H
|
|
|
FG10H
|
7mm*10mm(1/4″)
|
7mm*10mm(1/4″)
|
17mm
|
17mm
|
34mm
|
|
FG13H
|
10mm*13mm(3/8″)
|
10mm*13mm(3/8″)
|
20mm
|
20mm
|
37mm
|
|
FG15H
|
12mm*15.8mm(1/2″)
|
12mm*15.8mm(1/2″)
|
23mm
|
23mm
|
45mm
|
|
FG18H
|
14.3mm*18.5mm
|
14.3mm*18.5mm
|
26mm
|
26mm
|
48mm
|
|
FG21H
|
17mm*21.2mm(5/8″)
|
17mm*21.2mm(5/8″)
|
29mm
|
29mm
|
48mm
|
|
FG25H
|
20mm*25mm(3/4″)
|
20mm*25mm(3/4″)
|
33mm
|
33mm
|
48mm
|
|
FG28H
|
23mm*28.5mm(7/8″)
|
23mm*28.5mm(7/8″)
|
36mm
|
36mm
|
48mm
|
|
FG34H
|
28mm*34.5mm(1″)
|
28mm*34.5mm(1″)
|
42mm
|
42mm
|
48mm
|
|
FG42H
|
36mm*42.5mm(1-1/2″)
|
36mm*42.5mm(1-1/2″)
|
51mm
|
51mm
|
60mm
|
|
FG54H
|
48mm*54.5mm(2″)
|
48mm*54.5mm(2″)
|
63mm
|
63mm
|
70mm
|
Custom Service:
H shape connector custom service is workable for us. Like color, materials, packing quantity, packages, logo etc.
